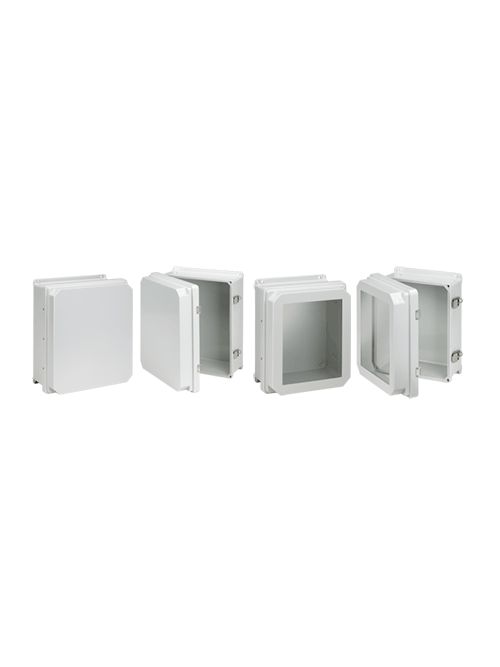

Hoffman RHJ1412HWPL2LG Light Gray Fiberglass NEMA 4X Hinged Raised? Cover Enclosure
$235.24/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # RHJ1412HWPL2LG
North Coast Part # 544129

Features

  • Compression-molded fiberglass construction
  • Overlapping raised solid- and window-covers
  • Windows are clear polycarbonate
  • Cover fastens with padlockable Type 316 stainless steel latches
  • Type 304 stainless steel piano hinges
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact

Notes

  • A x B x C are internal dimensions.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes
  • Swing-Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview

Specifications

  • Bulletin Number: HJ
  • Material: Fiberglass
  • Model Code: 15865
  • Ship Wt. Std. Pkg. (lbs): 9.0
  • Interchangeable: False
  • Catalog Number: RHJ1412HWPL2LG
  • A in.: 13.62
  • B in.: 11.62
  • C in.: 7.24
  • K in.: 3.25
  • L in.: 15.22
  • D in.: 8.13
  • F in.: 7.81
  • G in.: 14.75
  • H in.: 10.00
  • Panel Size in.: 12.75 x 10.88
  • J in.: 5.63
  • W in.: 13.22
  • Q in.: 10.25
  • P in.: 12.25
  • Aluminum Panel: A16P14AL
  • Steel Panel: A16P14
  • I in.: 15.51
  • No. of latches: 2
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || Enclosure flammability per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Overview

UPC 78351015865
GTiN 00783510158651
Finish Untreated
Width 295 mm
Size 15.32x13.30x8.19 in
Color 7035 Light Gray
Type Two Lock, Single Door
Material Fiberglass
Applications Enclosures feature a raised, hinged, overlapping cover design that ensures a more-secure seal and offers increased internal space for mounting components. Available with solid and window covers. Latches provide easy access and security.
Mounting Type Wall
Depth 184 mm
Height 346 mm
Standard UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,Enclosure Flammability Per UL 508A,IEC 60529, IP66
Family Brand Name Hoffman
Number of Latches 2
Cover Type Raised with Hinged Latches
Sub Brand J-Series
