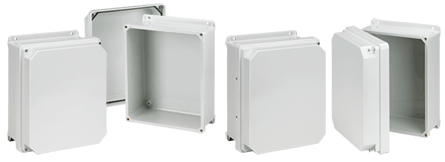

Hoffman RHJ1816WLG Light Gray Fiberglass NEMA 4X Raised? Cover Enclosure
$295.56/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # RHJ1816WLG
North Coast Part # 606783

Features

  • Compression-molded fiberglass construction
  • Overlapping solid raised-cover
  • Cover fastens with screws
  • Type 304 stainless steel piano hinges on hinged models
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact

Notes

  • A x B x C are internal dimensions.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes
  • Swing-Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview

Specifications

  • Bulletin Number: HJ
  • Material: Fiberglass
  • Model Code: 15874
  • Ship Wt. Std. Pkg. (lbs): 16.0
  • Interchangeable: False
  • Catalog Number: RHJ1816WLG
  • A in.: 17.48
  • B in.: 15.77
  • C in.: 9.44
  • K in.: 3.25
  • L in.: 19.22
  • D in.: 10.25
  • F in.: 10.01
  • G in.: 18.75
  • H in.: 12.00
  • Panel Size in.: 16.75 x 14.88
  • J in.: 7.76
  • W in.: 17.22
  • Q in.: 14.25
  • P in.: 16.25
  • Steel Panel: A18P16
  • I in.: 19.51
  • Door Fasteners: 4 screws
  • Alum Panel: A18P16AL
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || Enclosure flammability per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Categories

Overview

UPC 78351015874
GTiN 7.8351E+11
Width 15.77 in
Size 19.32x17.31x11.07 in
Type Wall-Mount, Fiberglass and Thermoplastic
Material Fiberglass
Applications Controls and Drives; Corrosive Environments
Depth 9.44 in
Height 10.25 in
Standard CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,Enclosure Flammability Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
Family Brand Name Hoffman
Sub Brand J-Series
