NVENT S164046G060 AC 400 460V 50 60

Features

• Slim fit design
• Standard cutout dimension for easy exchange
• Energy efficient rotary compressor
• R134a earth-friendly refrigerant
• Models for 115, 230, and 400/460 3-phase VAC power input
• UL Listed to save customers time and money with agency approvals
• Active condensate management to prevent dripping water
• Aesthetic design plastic cover to optimize air flow
• Three mounting options; fully recessed, partial recessed and surface mount
• Remote access control option for monitoring units worldwide
• Easy filter replacement for extremely dusty environments
• Dust resistant coils for filterless operation
• Every unit functionally tested before shipping
• Standard Air Conditioners are compatible with an enclosure door switch

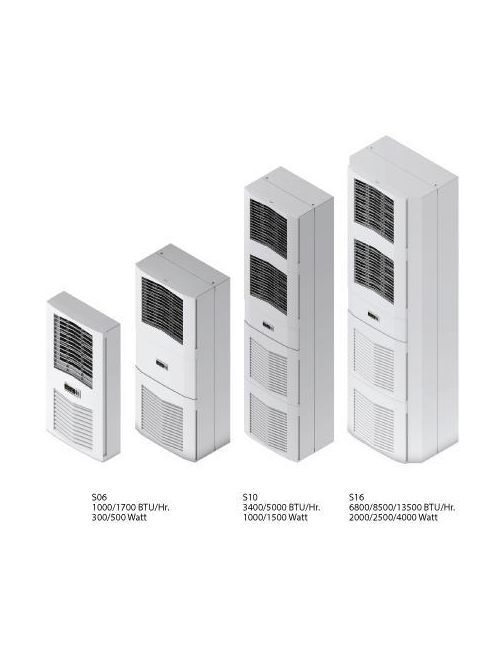

• Nominal cooling capacity:
• S06 1000 and 1500 BTU/hr. (300 and 500 W)
• S10 3400 and 5000 BTU/hr. (1000 and 1500 W)
• S16 6800, 8500, and 13500 BTU/hr. (2000, 2500, and 4000 W)
• Operating temperature range from 50 F / 10 C to 131 F / 55 C

Notes

• Reference the Spec Sheet in the Downloads tab for complete product specifications.
• Units with Remote Access Control utilize a digital controller and communicate via SNMP, Profinet, Ethernet, Modbus, or USB.

Specifications

• Model Code: 29174
• Bulletin Number: MCLG
• Catalog Number: S164046G060
• Description: Indoor Model with Remote Access Control
• Nominal BTU/Hr.: 13500
• Nominal Watts: 4000
• Max Current (A): 15
• Fahrenheit Min.: 50
• Voltage: 400 - 460 VAC
• Fahrenheit Max.: 131
• Height (in.): 62.2
• Width (in.): 19.7
• Depth (in.): 13.4
• Weight (lb.): 203
• Standards: UL/cUL Listed Type 12; File No.SA6453 || CE || EAC || IP 54 Internal Loop || IP34 External Loop
