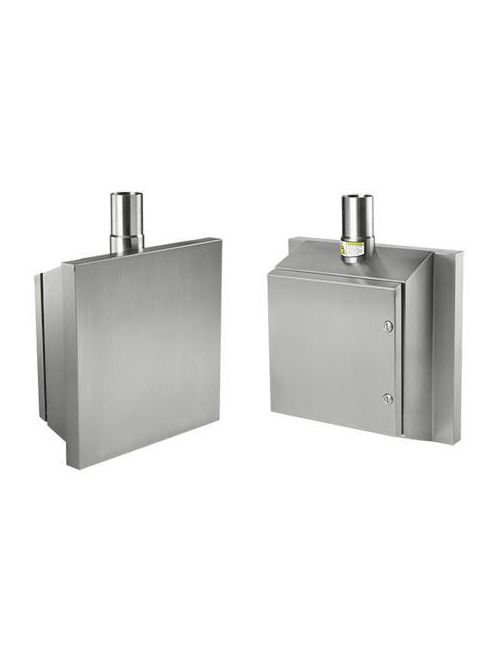

SYSPEND HMI ENCL, TYPE 4X
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,637.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # S505020SS
North Coast Part # 1900118

Features

  • Enclosure provides modern, flat-screen monitor-style aesthetics
  • Integrated side handles allow for easy repositioning of enclosure
  • Fully concealed silicone gasket area provides complete protection in washdown environments
  • 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
  • Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
  • Enclosure can be flipped for either pendant or pedestal mounting
  • Hinges are shielded by door
  • Suspension arm adapter included to attach to Syspend Sanitary Suspension System and Syspend VHDS-Motion Arm
  • Suspension arm adapter can be installed backwards to provide 40-degree tilt for pedestal applications
  • Internal support plate provides extra rigidity for suspension mounting

Specifications

  • Height (H) (inch): 19.68
  • Height (H) (millimetre): 500
  • Width (W) (inch): 19.68
  • Width (W) (millimetre): 500
  • Depth (D) (inch): 7.87
  • Depth (D) (millimetre): 200
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Steel Panel: A16P10
  • Weight (pound): 29.8
  • Weight (kilogram): 13.5
  • Modification Services: No
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #3
  • Thickness (T) (gauge): 18
  • Thickness (T) (millimetre): 1.2
  • Sub Brand: Syspend
  • Size: 19.69x19.69x7.87 in

Categories

Overview

UPC 78351019326
Item Long Description The Syspend Sanitary HMI enclosure is specifically designed to house process control equipment in sanitary washdown environments, particularly food and beverage manufacturing. It features many clean design elements and meets Type 4X and IP69K requirements for high-pressure, high-temperature washdown applications. Combine the enclosure with Syspend Sanitary Suspension System to suspend equipment for easy cleaning and washdown. Furnished with grounding hardware, internal support plate, suspension arm adapter, and hardware for attaching the support plate and adapter.
GTiN 00783510193263
Width 19.68 in
Size 19.69x19.69x7.87 in
Type SYSPEND Sanitary Enclosure,Type 4X
Material SS Type 304
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 200 mm
Height 19.68 in
Weight 29.8 lb
Standard 12,4X,CSA File No. 42186,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,IP69K,NEMA/EEMAC Type 4,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Syspend
Finish Brushed
Thickness 1.2 mm
