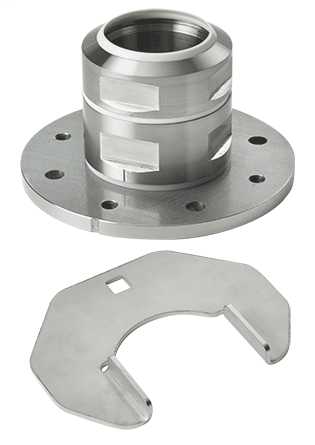

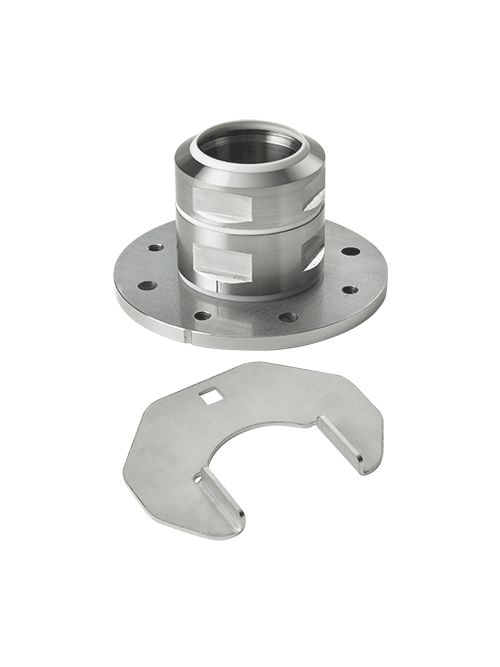

Hoffman SSBBSS 304 Stainless Steel HMI Sanitary Swivel Base Bracket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,017.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # SSBBSS
North Coast Part # 763996

Features

  • Type 304 polished stainless steel
  • Includes 4 set screws that provide means of leveling the entire suspension system
  • Surface mounting fasteners are not provided
  • Syspend-Lok Wrench Head for attaching base bracket to tubes is included
  • Strap wrench or spanner wrench that opens to 80 mm or greater can also be used
  • Not compatible with Syspend Sanitary HMI Base Bracket Cover

Specifications

  • Material: Stainless Steel 304
  • Weight (kilogram): 3.72
  • Weight (pound): 8.2
  • Modification Services: No
  • Color: Unpainted
  • Finish: Polished
  • Thickness (T) (inch): 0.45
  • Thickness (T) (millimetre): 11.4
  • Sub Brand: Syspend

Overview

UPC 78351019348
Item Long Description Syspend Sanitary HMI Swivel Base Bracket provides a means of attaching tube to the floor or a machine. Arm can be rotated or turned 330 degrees. Syspend-Lok attachment method prevents tubes from turning and pulling out of fittings and provides a water-tight connection.
GTiN 00783510193485
Type SYSPEND HMI Sanitary System
Material SS Type 304
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Weight 8.2 lb
Family Brand Name Hoffman
Sub Brand Syspend
Finish Polished
Thickness 0.45 in
