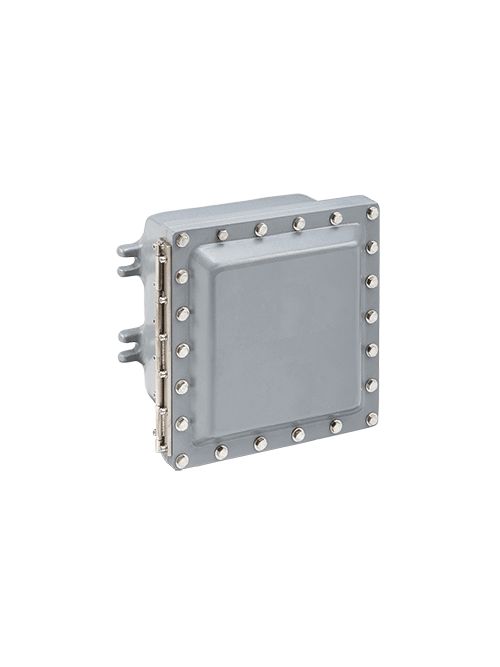

NVENT HOF SX7EGG6 UL Junction Box 1
Product image thumbnail 0
Product image thumbnail 1
$3,854.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # SX7EGG6
North Coast Part # 1161579

Features

  • Low copper aluminum alloy and stainless steel bolts and screws for corrosion resistance
  • Gasket o-ring provides Type 4X rating
  • Internal mounting panel
  • Grey electrostatic polyester paint
  • External earth screw
  • NPT threads for rigid conduit
  • Body and cover can be drilled and threaded according to customers’ specifications

Accessories

  • Glass windows of different diameters
  • Breather drain
  • Epoxy paint

Specifications

  • Model Code: 29652
  • Material: Aluminum
  • Product Weight lbs.: 105.79
  • Product Weight kg: 48.00
  • Catalog Number: SX7EGG6
  • A in.: 19.68
  • B in.: 19.68
  • C in.: 8.60
  • M in.: 16.00
  • N in.: 16.00
  • X in.: 14.25
  • Y in.: 14.25
  • Z in.: 6.79
  • Cover Type: Hinge
  • Industry Standards: UL1203 || NEC 500 – 503 || UL 886 || NEMA 7, 9, 4X, 3
  • Certifications: Class I, Division 1 Group C, D || Class II Group E, F, G || Class III || Type 7, 9, 4X, 3

Overview

UPC 78351029652
GTiN 00783510296520
Width 19.68 in
Size 19.68x19.68x8.58in
Material Aluminum
Applications Hazardous Environments
Depth 8.60 in
Height 19.68 in
Weight 105.79 lb
Family Brand Name Hoffman
Sub Brand Hoffman
Type Hazardous Location Enclosures
