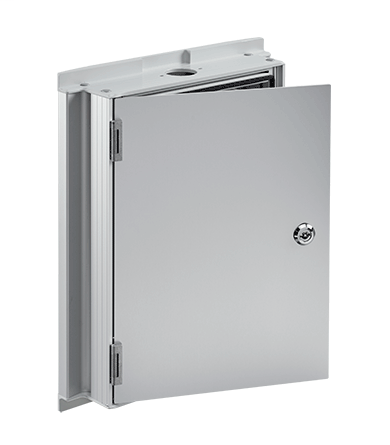

NVENT HOF SY322266A Alum HMI H. Bac
$843.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # SY322266A
North Coast Part # 1826968

Features

  • Extruded, single-walled aluminum construction for enhanced ergonomics and heat dissipation
  • Anodized and RAL 7035 sections
  • Two body style options for a variety of configurations
  • Integrated side handles for clean appearance and ease of operation
  • Integrated mounting extrusions for installing components or din rail directly inside the enclosure using brackets or spring nuts
  • Anodized aluminum front plate installed into enclosure
  • Pre-cut mounting holes compatible with support arm systems; pedestal mounting when enclosure is inverted
  • Oil-resistant gasket attached with oil-resistant adhesive
  • Extrusions inside enclosure
  • Seamless integrated handles
  • Body is available hinged or solid with hinged back-plate
  • Single-walled aluminum body

Notes

  • X, Y and Z dimensions refer to usable space (height, width, depth)

Specifications

  • Bulletin Number: VMA
  • Model Code: 34092
  • Catalog Number: SY322266A
  • A in.: 17.17
  • B in.: 13.78
  • C in.: 3.15
  • X in.: 12.80
  • Y in.: 8.86
  • Z in.: 2.60
  • Weight (lb.): 13.89
  • System Compatibility: CS2 Flange Coupling, Syspend 180-MAX (with Narrow Adapter)
  • Replacement Front Plate: SY3222AFP
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || IEC 60529, IP65325

Categories

Overview

UPC 78351034092
GTiN 00783510340926
Width 13.78 in
Depth 3.15 in
Height 17.17 in
Weight 13.89 lb
Family Brand Name nVent HOFFMAN
Type HMI Enclosure Systems
Applications Controls and Drives
