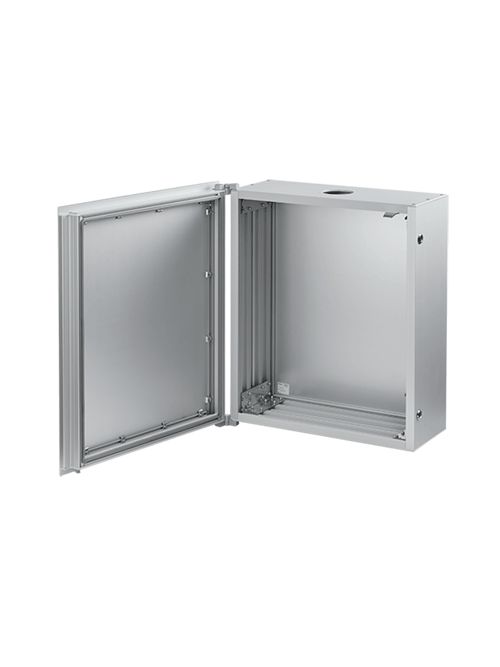

NVENT HOF SY404016A Alum HMI Door 4
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,553.41/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # SY404016A
North Coast Part # 1688169

Features

  • Extruded, single-walled aluminum construction for enhanced ergonomics and heat dissipation
  • Body is available hinged or solid with hinged back-plate for a variety of configurations
  • Integrated side handles for clean appearance and ease of operation
  • Integrated mounting extrusions for installing components or din rail directly inside the enclosure using brackets or spring nuts
  • Front plate installed into enclosure
  • Pre-cut mounting holes compatible with support arm systems; pedestal mounting when enclosure is inverted
  • Oil-resistant gasket attached with oil-resistant adhesive

Specifications

  • Height (H) (inch): 20.12
  • Height (H) (millimetre): 511
  • Width (W) (inch): 20.67
  • Width (W) (millimetre): 525
  • Depth (D) (inch): 7.09
  • Depth (D) (millimetre): 180
  • Material: Aluminum
  • Weight (pound): 34.33
  • Weight (gram): 15,570
  • System Compatibility: Compact Series 2, Syspend 180-Max, Syspend 281-Max
  • Replacement Front Plate: SY4040AFP
  • Body Type: Hinged Door
  • Color: Unpainted
  • Finish: Anodized
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.5

Related Products

Accessory

  • SYSPN
  • SYMBRK
  • SY4040AFP
  • CCUSB
  • SYARK
  • SYAGK

Overview

UPC 78351034108
Item Long Description The Syspend Aluminum HMI enclosure is designed to accommodate modern touch-screen HMI devices and can be pendant- or pedestal-mounted. Extruded aluminum top and sides provide enhanced usability with internal mounting channels. The single-walled aluminum reduces the overall weight of the enclosure, eliminating strain during installation and use. The integrated side handles provide enhanced ergonomics. The Syspend Aluminum HMI enclosure's aesthetics are clean and modern and the life of the HMI system is extended due to increased heat dissipation.
GTiN 00783510341084
Width 20.67 in
Depth 180 mm
Height 20.12 in
Weight 34.33 lb
Family Brand Name Hoffman
Type HMI Enclosure Systems
Applications Controls and Drives
Finish Anodized
Thickness 2.5 mm
