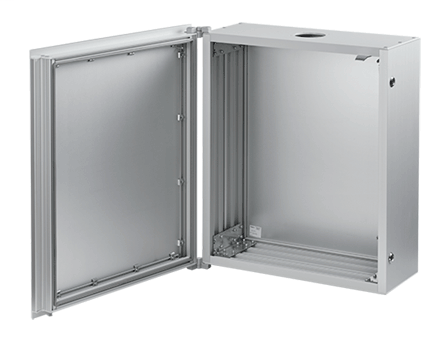

NVENT SY454716A Alum HMI Door 450x4
$1,544.32/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # SY454716A
North Coast Part # 1832000

Features

  • Extruded, single-walled aluminum construction for enhanced ergonomics and heat dissipation
  • Anodized and RAL 7035 sections
  • Two body style options for a variety of configurations
  • Integrated side handles for clean appearance and ease of operation
  • Integrated mounting extrusions for installing components or din rail directly inside the enclosure using brackets or spring nuts
  • Anodized aluminum front plate installed into enclosure
  • Pre-cut mounting holes compatible with support arm systems; pedestal mounting when enclosure is inverted
  • Oil-resistant gasket attached with oil-resistant adhesive
  • Extrusions inside enclosure
  • Seamless integrated handles
  • Body is available hinged or solid with hinged back-plate
  • Single-walled aluminum body

Notes

  • X, Y and Z dimensions refer to usable space (height, width, depth)

Specifications

  • Bulletin Number: VMA
  • Model Code: 34111
  • Catalog Number: SY454716A
  • A in.: 22.09
  • B in.: 23.62
  • C in.: 7.09
  • X in.: 17.72
  • Y in.: 18.70
  • Z in.: 6.54
  • Weight (lb.): 40.48
  • System Compatibility: Compact Series 2, Syspend 180-MAX, Syspend 281-MAX
  • Replacement Front Plate: SY4547AFP
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || IEC 60529, IP65561

Overview

UPC 78351034111
GTiN 00783510341114
Width 23.62 in
Depth 7.09 in
Height 22.09 in
Weight 40.48 lb
Family Brand Name nVent HOFFMAN
Type HMI Enclosure Systems
Applications Controls and Drives
