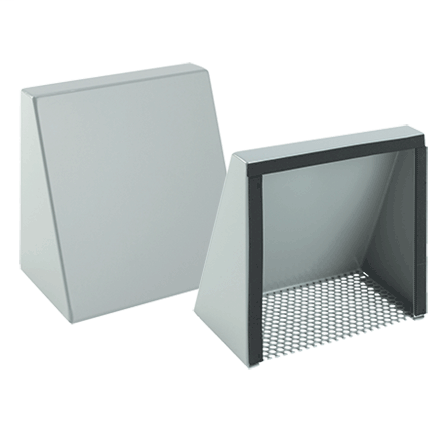

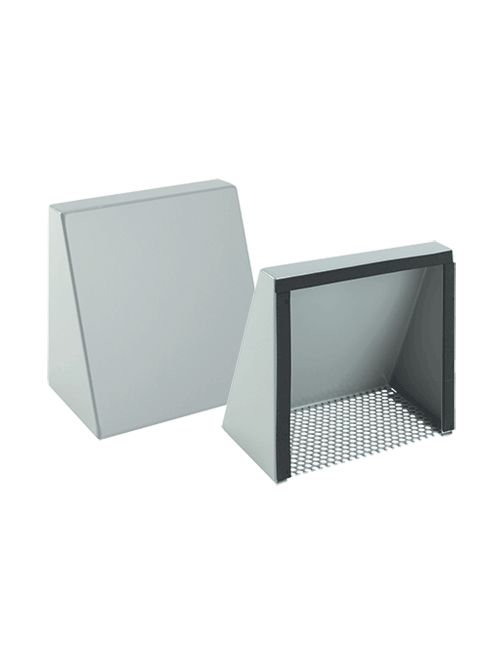

Hoffman T10S3R 12 x 12 Inch NEMA 3R Gray Steel Cooling Fan Shroud Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$331.64/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # T10S3R
North Coast Part # 18252

Features

  • Two fan shrouds per package
  • Perforated ventilation screen
  • Pressure-sensitive adhesive-backed gasket and mounting hardware

Specifications

  • Height (H) (inch): 12
  • Height (H) (millimetre): 305
  • Width (W) (inch): 12
  • Width (W) (millimetre): 304.8
  • Depth (D) (inch): 4.71
  • Depth (D) (millimetre): 119.634
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Dimensions (H x W) (inch): 12.00 x 12.00
  • Dimensions (H x W) (millimetre): 305 x 305
  • Modification Services: Yes
  • Type Number: Type 3R
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Size: 12.00 x 12.00 in
  • Housing Material: Mild Steel

Overview

GTiN 00783510138622
Width 12 in
Size 12.00 x 12.00 in
Type Type 3, 3R, 4, 4X Boxes and Enclosures
Applications Controls and Drives; Power Distribution
Height 12 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E61997,IEC 60529, IP22,NEMA/EEMAC Type 3R,UL 508A Listed; Type 3R; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
Product UPC 78351013862
Housing Material Mild Steel
Finish Powder Coated
Color Gray
Thickness 1.52 mm
Depth 119.634 mm
Material Steel
