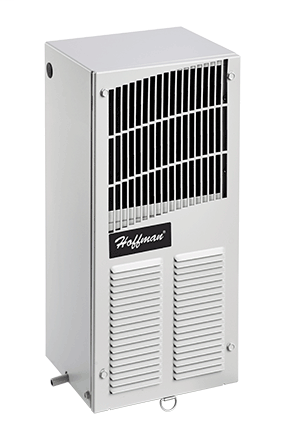

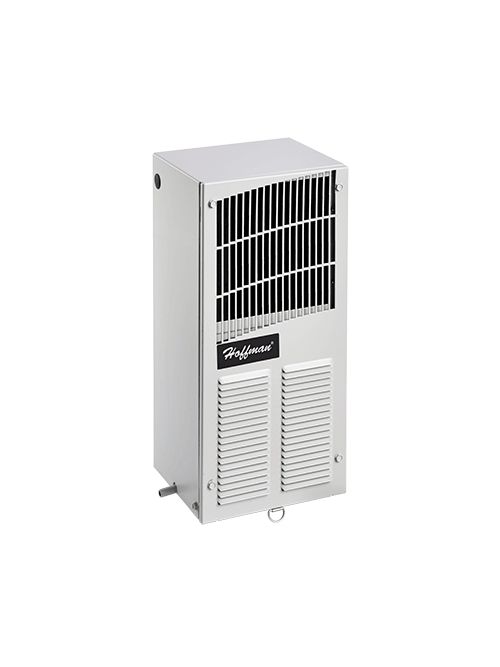

Hoffman T150116G152 800 BTU/HR 115 Volt Sealed Enclosure Cooling Air Conditioner
$3,536.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # T150116G152
North Coast Part # 934707

Features

  • Stock models equipped with head pressure control for low-ambient operation, compressor heater, coated condenser coil, malfunction switch, thermostat and heater package
  • Models for 115, 230 and 460 VAC power input
  • UL Listed to save customers time and money with agency approvals (some models UL recognized)
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
  • Exterior and fully recessed mounting options on many models
  • Compact footprint to minimize real estate and maximize capacity
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Every unit functionally tested before shipping
  • Standard Outdoor Air Conditioner models also include:
  • Telcordia GR-487 capable
  • Thermostat
  • Corrosion-resistant components
  • Malfunction switch
  • Compressor heater
  • Head pressure control
  • Enclosure heater
  • R134A earth-friendly refrigerant

Notes

  • ProAir A/C may be more appropriate. Refer to ProAir A/C Chapter. Consult the Factory for availability and catalog number.
  • Reference the Spec Sheet in the Downloads tab for complete product specifications, performance curves and detailed drawings.

Specifications

  • Model Code: 22493
  • Bulletin Number: MCL
  • Catalog Number: T150116G152
  • Description: Outdoor Model/SST/Corrosion/4X
  • Width (in.): 7.50
  • Depth (in.): 6.30
  • Fahrenheit Min.: -40
  • Fahrenheit Max.: 131
  • Max Current (A): 3.5
  • Weight (lb.): 27
  • Voltage: 100 - 120 VAC
  • Nominal BTU/Hr.: 800
  • Nominal Watts: 235
  • Height (in.): 15.75
  • Standards: UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453 || UR/cUR Recognized || UR/cUR Recognized on select models, reference performance data tables. || CE || EAC || Telcordia GR-487 capable

Overview

UPC 78351022493
GTiN 00783510224936
Width 7.50 in
Color RAL 7035 Light Gray/Semi-Textured Powder Coated
Voltage 120 Volt
Applications For Industrial Automation, Waste Water Treatment Systems, Package Handling Equipment, Security and Defense Systems
Depth 6.30 in
Height 15.75 in
Weight 27 lb
Frequency 50/60 Hz
Wattage 235 Watt
Family Brand Name Hoffman
BTU Hour 800 BTU
Amperage 3.8/3.6 Amp
Max Current 3.5 A
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand T-Series
Type Outdoor, Compact
Material Galvanized Sheet Metal
Cord Type 6 ft Cord with NEMA 5-15 Plug
Mounting Type Flange
Temperature Rating -40 to 131 F
Enclosure Type NEMA 4, 12, 3R
Power Rating 235 W
Control Type Mechanical Thermostat
Blade Dimensions 7.5 in W x 6.3 in D x 15.75 in H
