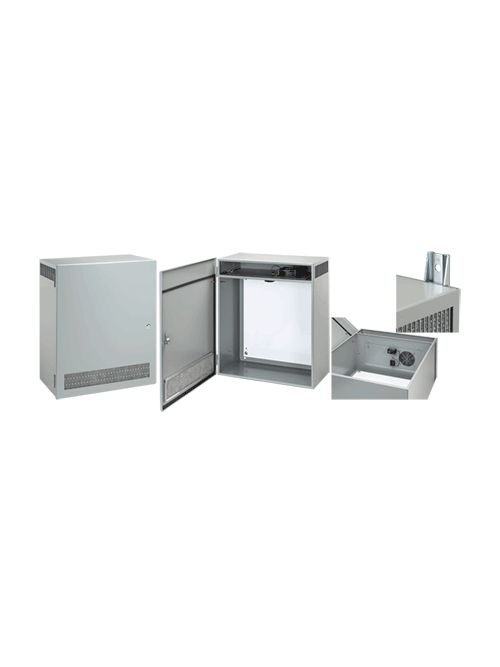

Hoffman T1F80LP Type 1 Vented Enclosure with 4 Inch Fan
Product image thumbnail 0
Product image thumbnail 1
$615.91/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # T1F80LP
North Coast Part # 601159

Features

  • Lift-off Hinged Door
  • Active cooling ventilation system with factory installed, thermostatically controlled fan (115 VAC) and filter
  • Terminal block power connection for fan
  • Washable expanded metal filter
  • Slotted quarter-turn latch
  • Collar studs for mounting optional panel
  • Grounding provision on door and body
  • Mounting holes on back of enclosure
  • Accepts optional mounting foot kit
  • Door gasket

Specifications

  • Height (H): 711 millimetre
  • Width (W): 610 millimetre
  • Depth (D): 324 millimetre
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Panel Size (D x E): 533 x 533 millimetre
  • Perforated Panel: A24P24PP
  • Panel Gauge: 12
  • System CFM: 80 cubic foot per minute
  • Suggested Horsepower: 3 HP (horsepower)
  • Solid Panel: A24P24
  • Fan Size: 4 inch
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T): 1.9 millimetre

Overview

UPC 78351017368
GTiN 00783510173685
Width 24 in
Size 28.00x24.00x12.75 in
Color Gray
Type Type 1 Boxes and Enclosures
Material Steel
Applications Controls and Drives; Power Distribution
Depth 12.75 in
Height 28 in
Standard CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP20,NEMA/EEMAC Type 1,Type 1,UL 508A Listed
Family Brand Name Hoffman
Sub Brand T1Flo
Finish Powder Coated
Thickness 1.9 Millimetre mm
