Hoffman T303020FTTXDA 30 x 30 x 20 Inch Dual Access Fiber Optic Cabinet
$2,548.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # T303020FTTXDA
North Coast Part # 682303

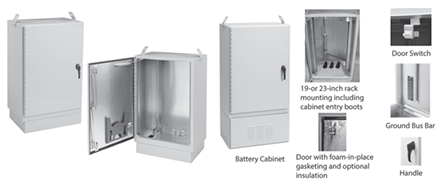

Features

  • Standard pitched roof promotes water runoff
  • Available with either single- or dual-access doors on front and rear for convenient access
  • Available with or without battery compartment
  • 3-point latching mechanisms and padlocking handles on doors provide security
  • Seamless foam-in-place gasket seals doors against moisture and dust
  • Wind latch mechanisms on doors control door when open for equipment maintenance
  • Removable lifting lugs (2) for easy installation
  • Rack angles adjustable for 19-in. or 23-in. spacing without modifications
  • Use cage nuts to mount equipment
  • Cabinet top insulation helps prevent the formation of condensation and reduce solar gain inside cabinet. Cabinet side insulation is optional
  • Base of cabinet has a 5.00-in. (127-mm) high aluminum mounting plinth to allow for cable alignment
  • Three pyramidal boots provided at base of cabinet for sealing various sizes of cables
  • All fasteners are stainless steel to maintain professional appearance in severe outdoor climate conditions
  • Grounding buss bar provided
  • Manufactured from Type 5052-H32 .125-in.-thick aluminum
  • Seams continuously welded and ground smooth
  • Heavy gauge continuous hinge

Accessories

  • Fiber Management Spool
  • Compact Cooling Fans
  • Temperature Control Switches
  • Light Package
  • Screw Packages
  • Fiber Optic Cabinet Pole-Mount Kit
  • Compact and Mid-Size Heat Exchangers
  • Type 3R, 12, 4 T4 Line Indoor/Outdoor Air Conditioners
  • Electric Heaters

Specifications

  • Bulletin Number: DTX
  • Model Code: 16923
  • Ship Wt. Std. Pkg. (lbs): 145.0
  • Interchangeable: False
  • Catalog Number: T303020FTTXDA
  • A in.: 30
  • B in.: 30
  • C in.: 20
  • Rack Units: 10
  • Description: Dual-Access, Without Battery Compartment
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12; File No. E61997 || CSA: Type 3, 3R, 4, 4X, 12 || NEMA/EEMAC Type 3, 3R, 4, 4X, 12 || EC60529, IP66 || Designed to meet Telcordia NEBS™ GR-487, GR-63 and IEC 48D || EIA 310-D with 19-in. spacing for rack equipment || Cabinet is RoHS compliant ||

Overview

UPC 78351016923
GTiN 00783510169237
Width 30 in
Type Outside Plant Products
Applications Datacom and Telecom Equipment
Depth 20 in
Height 30 in
Standard 12,3R,4,4X,CSA: Type 3,Cabinet Is R,Designed To Meet Telcordia NEBS GR-487,EC60529,EIA 310-D With 19-in. Spacing For Rack Equipment,File No. E61997,GR-63 And IEC 48D,IP66,NEMA/EEMAC Type 3,Type 3,UL 508A Listed
Family Brand Name Hoffman
Rack Unit 10
Sub Brand Hoffman
