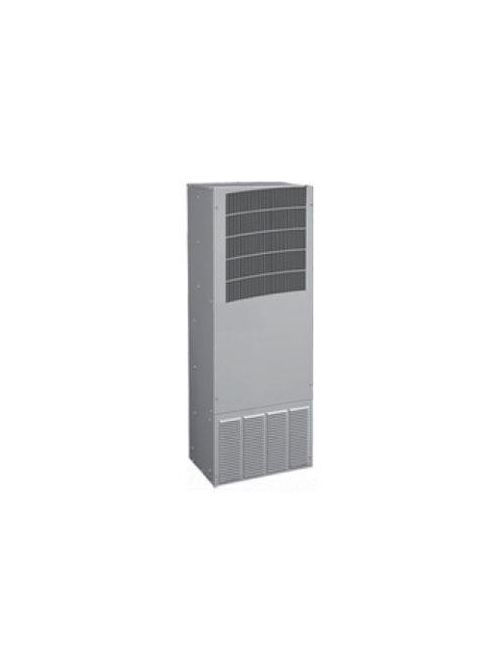

Hoffman T430616G150 6000 BTU/HR 115 Volt Sealed Enclosure Cooling Air Conditioner
Product image thumbnail 0
Product image thumbnail 1
$6,276.69/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # T430616G150
North Coast Part # 756654

Features

  • Stock models equipped with head pressure control for low-ambient operation, compressor heater, coated condenser coil, malfunction switch, thermostat and heater package
  • R134A or R-407C earth-friendly refrigerant
  • Models for 115, 230 and 460 VAC power input
  • UL Listed to save customers time and money with agency approvals (some models UL recognized)
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
  • Exterior and fully recessed mounting options on many models
  • Compact footprint to minimize real estate and maximize capacity
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Every unit functionally tested before shipping
  • Standard Outdoor Air Conditioner models also include:
  • Telcordia GR-487 capable
  • Thermostat
  • Corrosion-resistant components
  • Malfunction switch
  • Compressor heater
  • Head pressure control
  • Enclosure heater

Notes

  • ProAir Harsh Environment air conditioner may be more appropriate. Refer to ProAir Harsh Environment air conditioner catalog section. Consult the Factory for availability and catalog number.
  • Reference the Spec Sheet in the Downloads tab for complete product specifications, performance curves and detailed drawings.

Specifications

  • Model Code: 22252
  • Bulletin Number: MCL
  • Catalog Number: T430616G150
  • Description: Outdoor Model with Heat Pkg.
  • Width (in.): 15.75
  • Depth (in.): 10.90
  • Fahrenheit Min.: -40
  • Fahrenheit Max.: 131
  • Max Current (A): 8.6
  • Weight (lb.): 125
  • Voltage: 100 - 120 VAC
  • Nominal BTU/Hr.: 6680
  • Nominal Watts: 1958
  • Height (in.): 43.0
  • Standards: UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453 || UR/cUR Recognized || UR/cUR Recognized on select models, reference performance data tables. || CE || EAC || Telcordia GR-487 capable

Overview

UPC 78351022252
GTiN 00783510222529
Width 15.75 in
Color Gray
Voltage 120 Volt
Applications Controls and Drives; Power Distribution
Depth 10.90 in
Height 43.0 in
Weight 125 lb
Wattage 1958 Watt
Family Brand Name Hoffman
BTU Hour 6680 BTU
Max Current 8.6 A
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand T-Series
Type Air Conditioners
