Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # T622226G150
North Coast Part # 1006268


  • Compact footprint to minimize real estate and maximize capacity
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R-407C refrigerant
  • Models for 230 and 460 VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal cover for rugged factory and outdoor environments
  • Exterior and fully recessed mounting options on many models
  • Easy-mount flanges for simple installation


  • Height (H) (inch): 61.77
  • Height (H) (millimetre): 1,568.958
  • Width (W) (inch): 19.91
  • Width (W) (millimetre): 505.714
  • Depth (D) (inch): 17.36
  • Depth (D) (millimetre): 440.944
  • Nominal Capacity Btu/h (British thermal unit per hour): 23,500
  • Nominal Capacity Watts (watt): 6,886
  • Nominal Voltage (volt): 230
  • Number of Phases: 1
  • Voltage AC (volt): 200-250.00
  • Operating Temperature (degree Fahrenheit): -40-131.00
  • Operating Temperature (degree Celsius): -40-55.00
  • Max Current (ampere): 22
  • Protection Rating: NEMA Type 4
  • Remote Access Control: No
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness (T) (gauge): 18
  • Thickness (T) (millimetre): 1.21
  • Weight (pound): 218
  • Weight (kilogram): 99
  • NEMA Rating: 4 Watertight
  • Sub Brand: T-Series
  • Frequency Rating: 50/60 Hz


UPC 78351023404

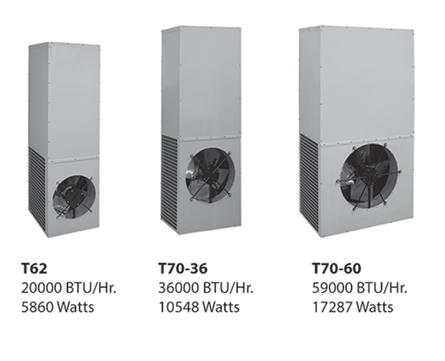

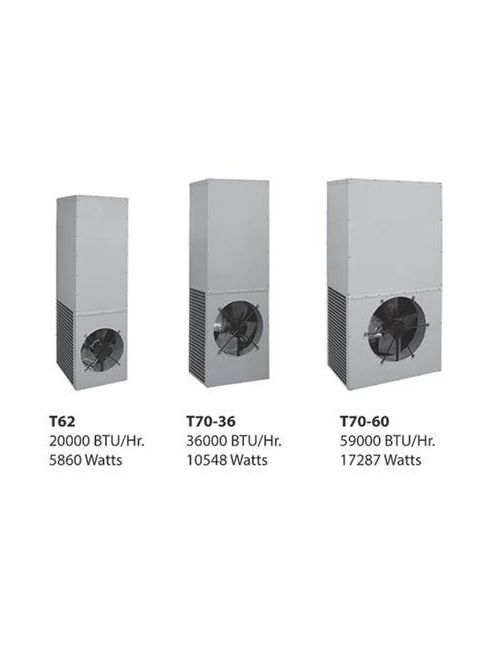

Item Long Description T-Series Large Capacity Air Conditioners keeps equipment cool even at peak heat loads. Their discreet design helps them to blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.
GTiN 00783510234041
Width 19.91 in
Color Gray
Voltage 250 Volt
Applications Controls and Drives; Power Distribution
Depth 440.944 mm
Height 61.77 in
Weight 218 lb
Frequency 50/60 Hz
Wattage 6886 Watt
Family Brand Name Hoffman
BTU Hour 23500 BTU
Max Current 22.0 A
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand T-Series
Type Air Conditioners
Finish Powder Coated
Thickness 1.21 mm
