NVENT HOF T706046G400 AC UNIT 460 V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$18,581.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # T706046G400
North Coast Part # 1098634

Features

  • Compact footprint to minimize real estate and maximize capacity
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R-407C refrigerant
  • Models for 230 and 460 VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal cover for rugged factory and outdoor environments
  • Exterior and fully recessed mounting options on many models
  • Easy-mount flanges for simple installation

Specifications

  • Height (H) (inch): 69.77
  • Height (H) (millimetre): 1,772.158
  • Width (W) (inch): 35.86
  • Width (W) (millimetre): 910.844
  • Depth (D) (inch): 22.94
  • Depth (D) (millimetre): 582.676
  • Nominal Capacity Btu/h (British thermal unit per hour): 60,000
  • Nominal Capacity Watts (watt): 17,584
  • Nominal Voltage (volt): 460
  • Number of Phases: 1
  • Voltage AC (volt): 400-460.00
  • Operating Temperature (degree Fahrenheit): -40-122.00
  • Operating Temperature (degree Celsius): -40-50.00
  • Max Current (ampere): 15.3
  • Protection Rating: NEMA Type 4
  • Remote Access Control: No
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Light Gray
  • Color Code: RAL 7035
  • Thickness (T) (gauge): 18
  • Thickness (T) (millimetre): 1.21
  • Weight (pound): 419
  • Weight (kilogram): 191
  • NEMA Rating: 4 Watertight

Overview

UPC 78351026232

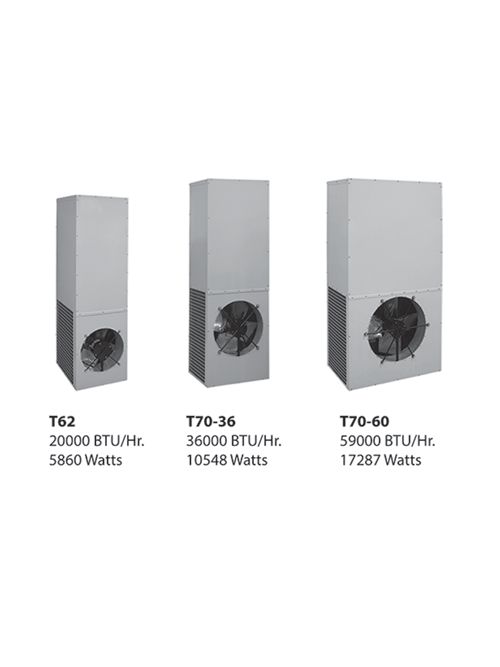

Item Long Description T-Series Large Capacity Air Conditioners keeps equipment cool even at peak heat loads. Their discreet design helps them to blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.
GTiN 00783510262327
Width 35.86 in
Voltage 460 Volt
Depth 582.676 mm
Height 69.77 in
Weight 419 lb
Wattage 17584 Watt
Family Brand Name Hoffman
BTU Hour 60000 BTU
Max Current 15.3 A
Max Temperature 122 degrees F
Min Temperature -40 degrees F
Type Air Conditioners
Applications Controls and Drives; Power Distribution
Finish Powder Coated
Color Gray
Thickness 1.21 mm
