NVENT HOF TE121024020 100 Watt 24V
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # TE121024020
North Coast Part # 757611


  • DC Powered operation for 24V and 48V applications
  • Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
  • Filterless design reduces maintenance requirements
  • Contains no refrigerant, making it earth friendly
  • Prewired with simple terminal block for easy wiring connections
  • Operates on the Peltier effect for cooling or heating
  • Compressor-free air conditioning for demanding indoor and outdoor applications

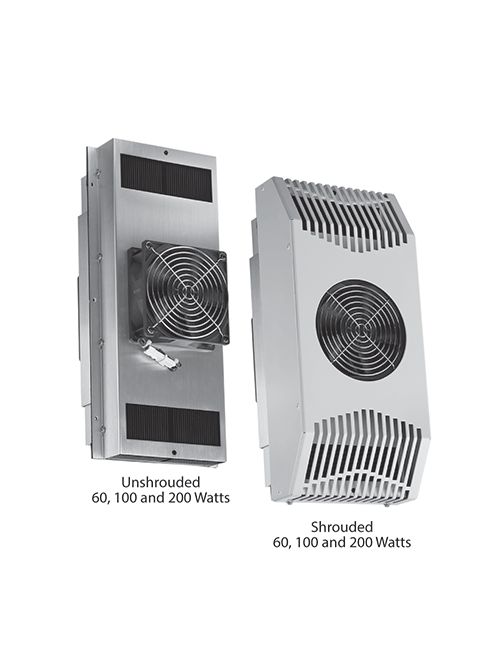

  • Shrouded and unshrouded models included in standard packages
  • Operating temperature range -40 C (-40 F) to 55 C (131 F)
  • Partial recess mount
  • Models
  • 60 Watt, 24 Volt
  • 100 Watt, 24/48 Volt
  • 200 Watt, 24/48 Volt


  • Reference the Spec Sheet in the Downloads tab for complete product specifications.


  • Optional thermolelectric temperature controller regulates cooling and heating automatically
  • Optional thermoelectric condenser manager helps direct condensation to the bottom of the enclosure


  • Model Code: 21066
  • Bulletin Number: MCLT
  • Catalog Number: TE121024020
  • Description: 24V w/o shroud
  • Width (in.): 6.02
  • Depth (in.): 7.40
  • Fahrenheit Min.: -40
  • Fahrenheit Max.: 131
  • Weight (lb.): 8.50
  • Voltage: 24 VDC
  • Nominal BTU/Hr.: 321
  • Nominal Watts: 94
  • Height (in.): 11.81
  • Standards: UR, cUR Recognized; Type 12, 3R, 4, 4X; File No. SA6453 || CE || IP 65


UPC 78351021066
GTiN 00783510210663
Width 6.02 in
Voltage 24 Volt
Type Indoor/Outdoor
Applications Controls and Drives, Corrosive Environments, Hygienic Environments, Power Distribution
Depth 7.40 in
Height 11.81 in
Weight 8.50 lb
Standard CE,IP 65,UR, CUR Recognized; Type 12, 3R, 4, 4X; File No. SA6453
Wattage 94 Watt
Family Brand Name Hoffman
BTU Hour 321 BTU
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand Hoffman
Color RAL 7035 Light Gray
Material Aluminum
Mounting Type Partial Recessed
Temperature Rating -40 to 131 F
Enclosure Type NEMA Type 3R, 4, 4X, 12, IP65
Power Rating 94 W
Blade Dimensions 6.02 in W x 7.4 in D x 11.81 in H
Operating Temperature -40 to 131 deg F
Operating Voltage 24 VDC
Housing Material Aluminum
Power Consumption 94 W
