NVENT TE162024020 200 Watt 24V TEC
$1,672.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # TE162024020
North Coast Part # 757610

Features

  • DC Powered operation for 24V and 48V applications
  • Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
  • Filterless design reduces maintenance requirements
  • Contains no refrigerant, making it earth friendly
  • Prewired with simple terminal block for easy wiring connections
  • Operates on the Peltier effect for cooling or heating
  • Compressor-free air conditioning for demanding indoor and outdoor applications

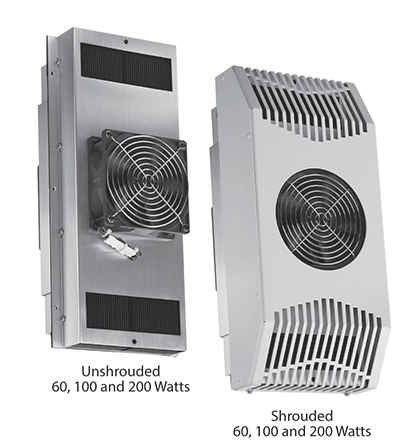

  • Shrouded and unshrouded models included in standard packages
  • Operating temperature range -40 C (-40 F) to 55 C (131 F)
  • Partial recess mount
  • Models
  • 60 Watt, 24 Volt
  • 100 Watt, 24/48 Volt
  • 200 Watt, 24/48 Volt

Notes

  • Reference the Spec Sheet in the Downloads tab for complete product specifications.

Accessories

  • Optional thermolelectric temperature controller regulates cooling and heating automatically
  • Optional thermoelectric condenser manager helps direct condensation to the bottom of the enclosure

Specifications

  • Model Code: 21068
  • Bulletin Number: MCLT
  • Catalog Number: TE162024020
  • Description: 24V w/o shroud
  • Width (in.): 7.09
  • Depth (in.): 7.25
  • Fahrenheit Min.: -40
  • Fahrenheit Max.: 131
  • Weight (lb.): 14.80
  • Voltage: 24 VDC
  • Nominal BTU/Hr.: 567
  • Nominal Watts: 166
  • Height (in.): 15.75
  • Standards: UR, cUR Recognized; Type 12, 3R, 4, 4X; File No. SA6453 || CE || IP 65

Categories

Overview

UPC 78351021068
GTiN 00783510210687
Width 7.09 in
Voltage 24 Volt
Type Thermoelectrics
Applications Controls and Drives; Corrosive Environments; Hygienic Environments; Power Distribution
Depth 7.25 in
Height 15.75 in
Weight 14.80 lb
Standard CE,IP 65,UR, CUR Recognized; Type 12, 3R, 4, 4X; File No. SA6453
Wattage 166 Watt
Family Brand Name Hoffman
BTU Hour 567 BTU
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand Hoffman
Operating Temperature -40 to 131 deg F
Operating Voltage 24 VDC
Housing Material Aluminum
Power Consumption 166 W
Blade Dimensions 15.75 x 7.09 x 7.25 in
