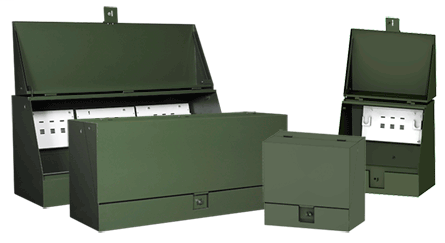

HOFF-E UJ303018M2 Sect Cabinet 12 G

$629.55/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Recessed stainless steel penta-head bolt with padlock security system standard on all models
5/8-11 threaded lifting provisions
Wind stop standard on all models (two stops provided if B dimension is greater than or equal to 42-in.)
Ground nut for each phase
Full range of modifications available on request
When ordering UJ cabinets, customer may specify multiple mounting panel options, including mild steel, galvanized and stainless steel (panels must be purchased separately)

Bulletin Number: UJ
Model Code: 16908
Ship Wt. Std. Pkg. (lbs): 132.0
Interchangeable: No
Catalog Number: UJ303018M2
A in.: 30
B in.: 30
C in.: 18
Description: Enclosure
Recommended Panel Qty.: 1
Recommended Panel Style: B or D
Material: Steel
Standards: Catalog weights & dimensions are careful estimates but not guaranteed.

UPC	78351016908
GTiN	00783510169084
Width	30 in
Size	30.00x30.00x18.00 in
Color	Green
Type	Utility Junction (UJ) Cabinets
Material	Steel
Applications	Enclosures provide sectionalizing and tap-point functionality for underground distribution systems. Available in a wide variety of single- and three-phase models, these enclosures are rated 15 and 25 KV at 200 or 600 amperes and will accept two-, three- and four-way junctions from all manufacturers.
Depth	18 in
Height	30 in
Standard	ANSI C57.12.28 Pad-Mounted Equipment Enclosure Integrity,RUS Approved
Family Brand Name	Hoffman
Sub Brand	Hoffman
