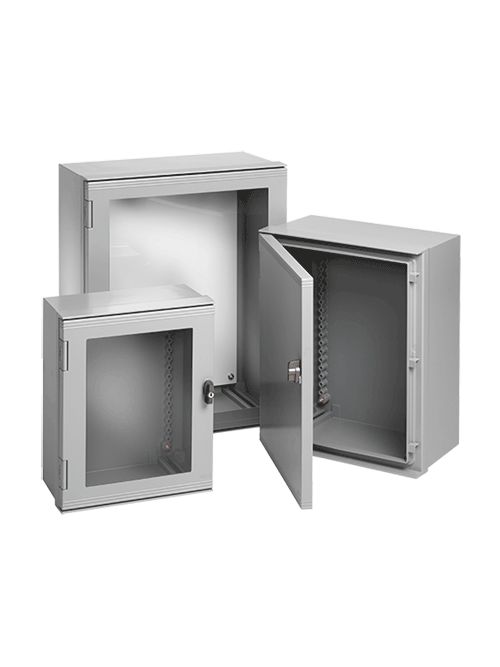

Hoffman UU1008030W 1008.1 x 808 x 321.1 mm Fiberglass NEMA 4X Window Door Enclosure
$2,366.51/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # UU1008030W
North Coast Part # 677982

Features

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
  • Fiberglass is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Enclosure may be rotated 180 degrees for left and right hinging
  • Molded-in drip shields are standard with each enclosure
  • Impact-resistant polycarbonate window is permanently bonded in place
  • Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
  • Door hinges are replaceable
  • Type 316 stainless steel quarter-turn latch. Optional keylocking or padlocking handle available.
  • Molded-in DIN bosses
  • Molded bosses on door provide additional mounting provisions
  • Integral mounting rails provide infinite panel adjustment front to back
  • Optional data pocket is high-impact thermoplastic

Notes

  • Purchase panels separately.
  • When installing enclosures in a right-hand hinge application that involves vibration, Hoffman recommends the use of pad-locking or key-locking quarter-turn latch accessories for door securement (UUHPL, UUHKL).
  • For CALIFORNIA residents only - WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please note that by posting this Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in this product. With Hoffman’s products, the exposure to these chemicals may be of no significant risk to you, but out of caution and to ensure your well-being, we have elected to place this warning on our site to make sure our customers are informed. You can find more information at http://www.oehha.ca.gov/proposition-65/about-proposition-65.

Accessories

  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Rack Angles (Type RA)

Specifications

  • Bulletin Number: UX1
  • Material: Fiberglass
  • Model Code: 35880
  • Ship Wt. Std. Pkg. (lbs): 62.35
  • Interchangeable: False
  • Catalog Number: UU1008030W
  • A in.: 39.37
  • B in.: 31.5
  • C in.: 11.81
  • K in.: 0.91
  • F in.: 11.30
  • Panel Size D x E in.: 37.01 x 29.02
  • S in.: 27.24
  • Window Size M x N in.: 35.35 x 27.48
  • J in.: 27.56
  • Conductive Panel: A40P30G
  • T in.: 35.24
  • Mounting G x H in.: 30.24 x 38.11
  • External Dimensions L x W in.: 40.35 x 32.48
  • Panel: A40P30
  • Door Style: Window
  • Internal Dimensions A x B x C in.: 39.68 x 31.81 x 12.64
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E619977 || Enclosure flammability evaluated per UL 508A || Window flammability evaluated per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Categories

Overview

UPC 78351035880
GTiN 7.8351E+11
Finish Acrylic Enamel
Width 1025 mm
Size 1025 x 825 mm
Color Light Gray
Type Wall-Mount, Fiberglass and Thermoplastic
Material Fiberglass
Applications Provides Outstanding Protection Against Corrosion and the Elements
Depth 11.81 in
Height 825 mm
Standard CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E619977,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
Capacity 15954 cu in
Family Brand Name Hoffman
Cover Type Hinged with Quarter-Turn Latch
Sub Brand UltrX
