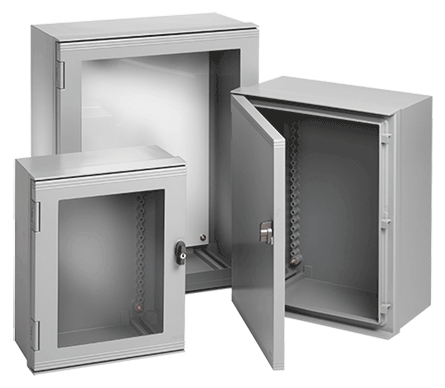

Hoffman UU605025 608.1 x 496.1 x 270 mm Fiberglass NEMA 4X Solid Door Enclosure
$952.61/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # UU605025
North Coast Part # 16455

Features

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
  • Fiberglass is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Enclosure may be rotated 180 degrees for left and right hinging
  • Molded-in drip shields are standard with each enclosure
  • Impact-resistant polycarbonate window is permanently bonded in place
  • Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
  • Door hinges are replaceable
  • Type 316 stainless steel quarter-turn latch. Optional keylocking or padlocking handle available.
  • Molded-in DIN bosses
  • Molded bosses on door provide additional mounting provisions
  • Integral mounting rails provide infinite panel adjustment front to back
  • Optional data pocket is high-impact thermoplastic

Notes

  • Purchase panels separately.
  • When installing enclosures in a right-hand hinge application that involves vibration, Hoffman recommends the use of pad-locking or key-locking quarter-turn latch accessories for door securement (UUHPL, UUHKL).
  • For CALIFORNIA residents only - WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please note that by posting this Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in this product. With Hoffman’s products, the exposure to these chemicals may be of no significant risk to you, but out of caution and to ensure your well-being, we have elected to place this warning on our site to make sure our customers are informed. You can find more information at http://www.oehha.ca.gov/proposition-65/about-proposition-65.

Accessories

  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Rack Angles (Type RA)

Specifications

  • Bulletin Number: UX1
  • Material: Fiberglass
  • Model Code: 35820
  • Ship Wt. Std. Pkg. (lbs): 32.5
  • Interchangeable: False
  • Catalog Number: UU605025
  • A in.: 23.62
  • B in.: 19.69
  • C in.: 9.84
  • K in.: 0.83
  • F in.: 9.41
  • Panel Size D x E in.: 20.98 x 17.00
  • S in.: 15.24
  • J in.: 15.75
  • Conductive Panel: A24P20G
  • T in.: 19.25
  • Mounting G x H in.: 17.99 x 22.44
  • External Dimensions L x W in.: 24.61 x 20.20
  • Panel: A24P20
  • Door Style: Solid
  • Internal Dimensions A x B x C in.: 23.94 x 19.53 x 10.63
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E619977 || Enclosure flammability evaluated per UL 508A || Window flammability evaluated per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Overview

UPC 78351035820
GTiN 00783510358204
Finish Powder Coated
Width 496 mm
Size 24.61 x 20.20 in
Color 7035 Light Gray
Type Single Lock, Single Door
Material Fiberglass
Applications Providing Outstanding Protection Against Corrosion
Mounting Type Wall
Depth 270 mm
Height 608 mm
Standard Enclosure Flammability Evaluated Per UL 508A,Window Flammability Evaluated Per UL 508A,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E619977,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,IEC 60529, IP66
Capacity 4970 cu in
Family Brand Name Hoffman
Cover Type Hinged
Sub Brand UltrX
