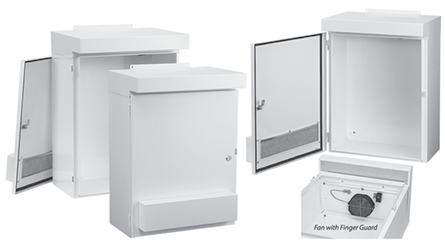

Hoffman WF3LP 29 x 24 x 12 Inch Galvanized Steel NEMA 3R Vented Enclosure
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # WF3LP
North Coast Part # 602003


  • White polyester powder finish with low solar absorption
  • Integrated solar shield top and intake cover
  • Gasket and filter
  • Adjustable thermostat (70-140 F)
  • Active cooling ventilation system with factory-installed fan and filter (115 VAC)
  • Terminal power connection for fan
  • Easily accessible and washable metal filter
  • Top front hood exhaust and door
  • Lift-off hinged door
  • Quarter-turn latch
  • External mounting brackets
  • Collar studs provided to mount the optional panel
  • Grounding provision on door and body
  • Gasketed door
  • 16 and 14 gauge galvanized steel
  • Largest two sizes constructed of aluminum


  • Purchase panels separately.


  • Compact Cooling Fans
  • Electric Heater
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Junction Box and Wall-Mount Enclosure Swing Out Panel Kit


  • Bulletin Number: A3RD
  • Material: Steel
  • Model Code: 15651
  • Ship Wt. Std. Pkg. (lbs): 100.0
  • Interchangeable: False
  • Catalog Number: WF3LP
  • A in.: 29
  • B in.: 24
  • C in.: 12
  • Panel Size D x E in.: 21.00 x 21.00
  • Panel: A24P24
  • Mounting Holes G x H in.: 29.94 x 13.00
  • Drive HorsePower (HP): 3
  • I in.: 5.59
  • Standards: UL 508A Listed; Type 3R; File Number E61997 || cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997 || NEMA/EEMAC Type 3R || IEC 60529, IP32



UPC 78351015651
GTiN 00783510156510
Width 24 in
Size 29.00x24.00x12.00 in
Type Type 3, 3R, 4, 4X Boxes and Enclosures
Material Steel
Applications Controls and Drives
Depth 12 in
Height 29 in
Standard CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP32,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Sub Brand WeatherFlo
