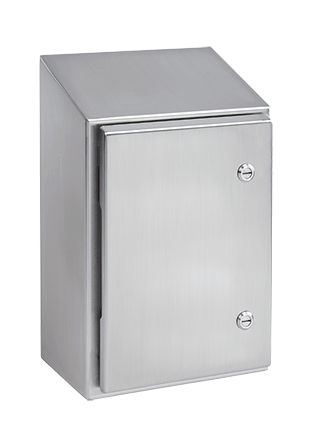

Hoffman WS363612SS 36 x 36 x 12 Inch 14 Gauge 304 Stainless Steel NEMA 4X Wall Mount Enclosure
$4,355.47/ea
Usually ships within 10 to 16 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # WS363612SS
North Coast Part # 155414

Features

  • Manufactured from 14 gauge Type 304 stainless steel
  • Seams continuously welded and ground smooth
  • Smooth Type 304 stainless steel lift-off bullet-style hinges
  • Hinges are shielded by door
  • Hinged side of door has provisions to allow direct flushing of hinge area
  • 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
  • 170-degree door opening
  • Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
  • Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
  • Stainless steel quarter-turn latches furnished with flush slotted insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
  • Enclosures with ‘A’ dimension of 16.00 in. (406mm) or greater utilize NEMA style panels; models with ‘A’ dimension less than 16.00 in. (406mm) utilize Junction Box style panels.
  • Mounting holes in back of body for direct mounting, optional stand-off kit or mounting bracket kit
  • Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole

Notes

  • WS080604SS, WS100804SS, WS121006SS and WS141208SS do not accept print pockets.
  • Purchase panels separately. Optional stainless steel, conductive or aluminum panels are available.
  • WS603616SS back is 10 gauge stainless steel.

Accessories

  • Mounting Bracket Kit
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Stand-Off Kit
  • Padlocking Handle Kit
  • Padlocking Latch Kit
  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier

Specifications

  • Bulletin Number: WS1
  • Material: Stainless Steel
  • Model Code: 13117
  • Ship Wt. Std. Pkg. (lbs): 107.0
  • Interchangeable: False
  • Catalog Number: WS363612SS
  • A in.: 36
  • B in.: 36
  • C in.: 12
  • G in.: 34.50
  • H in.: 34.50
  • Conductive Panel: A36P36G
  • A2 in.: 41.18
  • Panel: A36P36
  • A1 in.: 36.82
  • Latch Qty.: 5
  • Stainless Steel Panel: A36P36SS6
  • Standards: UL 508A Listed; Type 4, 4X, 12; File Number E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997 || NSF 169 || NEMA/EEMAC Type 4, 4X, 12 || IEC 60529, IP66

Overview

UPC 78351013117
GTiN 00783510131173
Finish #4 Brushed
Width 36 in
Size 36.00x36.00x12.00 in
Type Wall-Mount, Stainless Steel
Material 304 Stainless Steel
Applications For use in Sanitary Washdown Production Environments Like Food and Beverage Manufacturing
Mounting Type Wall
Depth 12 in
Height 36 in
Standard CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12,NSF 169,UL 508A Listed; Type 4, 4X, 12; File Number E61997
Family Brand Name Hoffman
Gauge 14
Cover Type Hinged with Quarter-Turn Latch
Sub Brand Watershed
