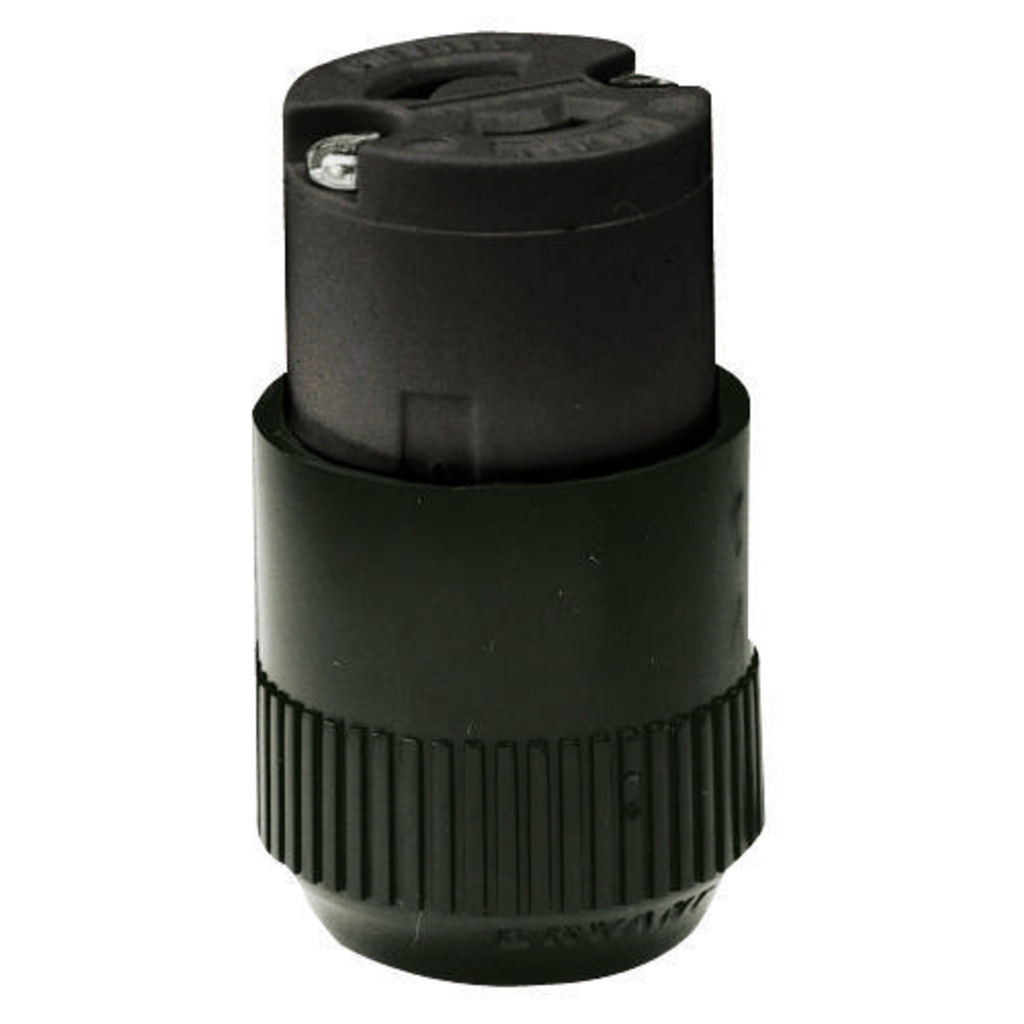

HWDK 7464NB LKG CONN, MIDGET, 15A 1
$22.51/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Bryant
Mfg Catalog # 7464NB
North Coast Part # 343710

Features

  • Smaller body size for use in tighter fit applications where larger products can't
  • Abuse resistant nylon housing

Specifications

General

  • Application: Heavy Duty Industrial
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 15A Midget Female Connector
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Bryant
  • Style: Non-Grounding
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Plugs
  • UPC: 781786616608

Dimensions

  • Display Size: Midget NEMA Locking
  • Height: 2.15 in
  • Length: 1.25 in
  • Width: 1.25 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current Rating: 15 A
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Conductor Related

  • Conductor Range: #14 AWG
  • Number Of Conductors: 2-Pole Non-Grounding
  • Number Of Wires: 2-Wire
  • Wire Size: #18 AWG to #12 AWG

Certifications and Compliance

  • Nema Rating: ML-1R

Logistics

  • Carton Quantity: 10 EA

Overview

UPC 78178661660
GTiN 00781786616608
Length 1.25 in
Width 1.25 in
Size 1.25 in x 1.25 in x 2.15 in
Voltage 125 Volt
Material Composite
Number of Conductors 2-Pole Non-Grounding
Applications Heavy Duty Industrial
Height 2.15 in
Style Non-Grounding
Wire Size 18-12 AWG
Temperature Rating -40 C
Family Brand Name Hubbell Wiring Device Kellems
NEMA ML-1R
TC Connection Screw Terminals
Amperage 15 Amp
Current 15 A
Number of Poles 2 Pole
Number of Wires 2
Sub Brand NEMA Locking
Type Plugs
Environmental Conditions Indoor Dry Unless Protected By Additional Means
