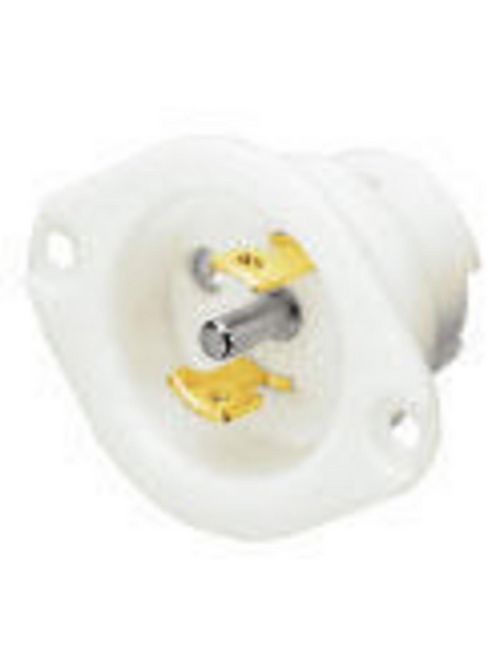

HCI 7486MB LKG INLT, MIDGET, 15A 12
Product image thumbnail 0
Product image thumbnail 1
$21.91/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Bryant
Mfg Catalog # 7486MB
North Coast Part # 339437

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 15A Midget Flanged Inlet
  • Material: Composite
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Bryant
  • Style: Non-Grounding
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
  • Type: Flanged Inlet
  • UPC: 781786669451

Dimensions

  • Display Size: Midget Locking
  • Height: 1.17 in
  • Length: 2.06 in
  • Width: 1.62 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 3000V Minimum in
  • Voltage Rating: 125/250 V
  • Voltage Rating Description: 125/250V
  • Wattage: 3750

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #12 AWG

Certifications and Compliance

  • Nema Rating: ML-3P

Logistics

  • Carton Quantity: 10 EA

Overview

UPC 78178666945
GTiN 00781786669451
Length 2.06 in
Width 1.62 in
Size Midget Locking
Color White
Voltage 125/250 Volt
Type Single Flanged Inlet
Material Composite
Applications Extra Heavy Duty Industrial
Height 1.17 in
Style Non-Grounding
Wire Size 18-12 AWG
Wattage 3750 Watt
Temperature Rating -40 C
Family Brand Name Hubbell Wiring Device Kellems
NEMA ML-3P
TC Connection Screw Terminals
Amperage 15 Amp
Current 15 A
Number of Poles 3 Pole
Number of Wires 3
Sub Brand Twist-Lock Devices
