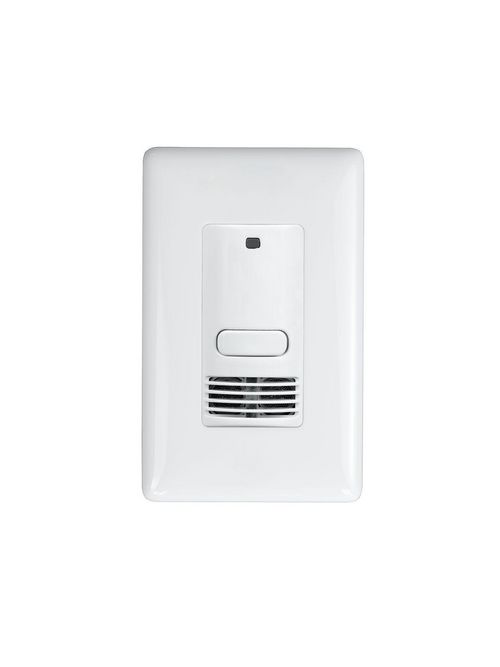

HBA LHUSS1-G-WH WS LH2 US Sngl Crt
$132.07/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Building Automation
Mfg Catalog # LHUSS1-G-WH
North Coast Part # 1098250

Features

  • Digital Ultrasonic (US) sensor
  • IntelliDAPT self-adaptive technology
  • no manual adjustment required
  • 1 or 2 relay models for single-level switching or bi-level switching
  • Occupancy (auto-on) and Vacancy (manual-on) operating modes
  • Available with or without Neutral
  • 400 square-foot, 180° coverage area
  • 120/277 VAC operation
  • No minimum load requirement
  • Zero Arc Point Switching
  • Five-year limited warranty

Specifications

  • Application: Restrooms;Storage Facilities
  • Collection Name: LightHAWK2 Wall Switch Vacancy/Occupancy Sensor Product Line
  • Color: White
  • Connectivity: Wired
  • Control: On/Off
  • DisplayBaseProduct: Yes
  • Environmental Conditions: Indoor
  • Increment Qty Override: No
  • Industry Standard(s): Title 24 Compliant
  • Keywords: LHUSS0;LHUSS1;LHUSD0;LHUSD2;LHDCUSD0;LHDCUSD2
  • Listings: UL
  • Minimum Order Quantity: 1 EA
  • Mounting Height: Standard Wallbox ft
  • Mounting Type: Single Gang NEMA Style Switch Box
  • On Website: Yes
  • Operating Temperature: 32 to 104 °F
  • Owning division: 3D
  • PLP Sequence: 19
  • Power Options: Line Voltage;Low Voltage
  • Power Supply: 120/277V AC, 50/60Hz 347V AC, 50/60Hz, 24V DC
  • Product Category: 120-277VAC and 347VAC models
  • Product Family: Occupancy-Vacancy Sensors
  • Product Name: LightHAWK® Ultrasonic Wall Switch Sensor
  • Product Type: Controls;Sensors
  • Quote Online - Web: No
  • Sales Org: C510
  • SAP Material Group 5: A10
  • SAP Material Number: LHUSS1-G-WH
  • Sensor Type: Ultrasonic
  • Show Sales Lookup: No
  • Space Planning: Stand-Alone Solutions
  • Technology: Daylight Harvesting;Motion Sensing;IntelliDAPT®
  • Type: Controls;Sensors
  • Voltage Rating: 24 V;120/277 V;347 V
  • Warranty Length: 5 Year Warranty
  • Web Show Inventory: Yes
  • WebShowPrice: No
  • Weight: 2.9 oz
  • UNSPSC: 41111961

Categories

Overview

UPC 64018160193
GTiN 00640181601933
Voltage 347 Volt
Type Automatic On/Off, Dual Circuit, 1-Button, Wall Switch
Applications For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse
Weight 2.9 oz
Family Brand Name Hubbell
Power Supply 120/277 V
CA Prop65 Warning WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color White
Material High Impact Injection Molded Plastic
Lens Type Impact Resistant
Response Time 4 - 30 min (Automatic Mode), 4, 8, 15 and 30 min (Fixed Mode), 5 sec (Test Mode)
Blade Dimensions 1.7 in W x 1.72 in D x 3.38 in H
Sensor Type Ultrasonic
Sub Brand LightHAWK2
