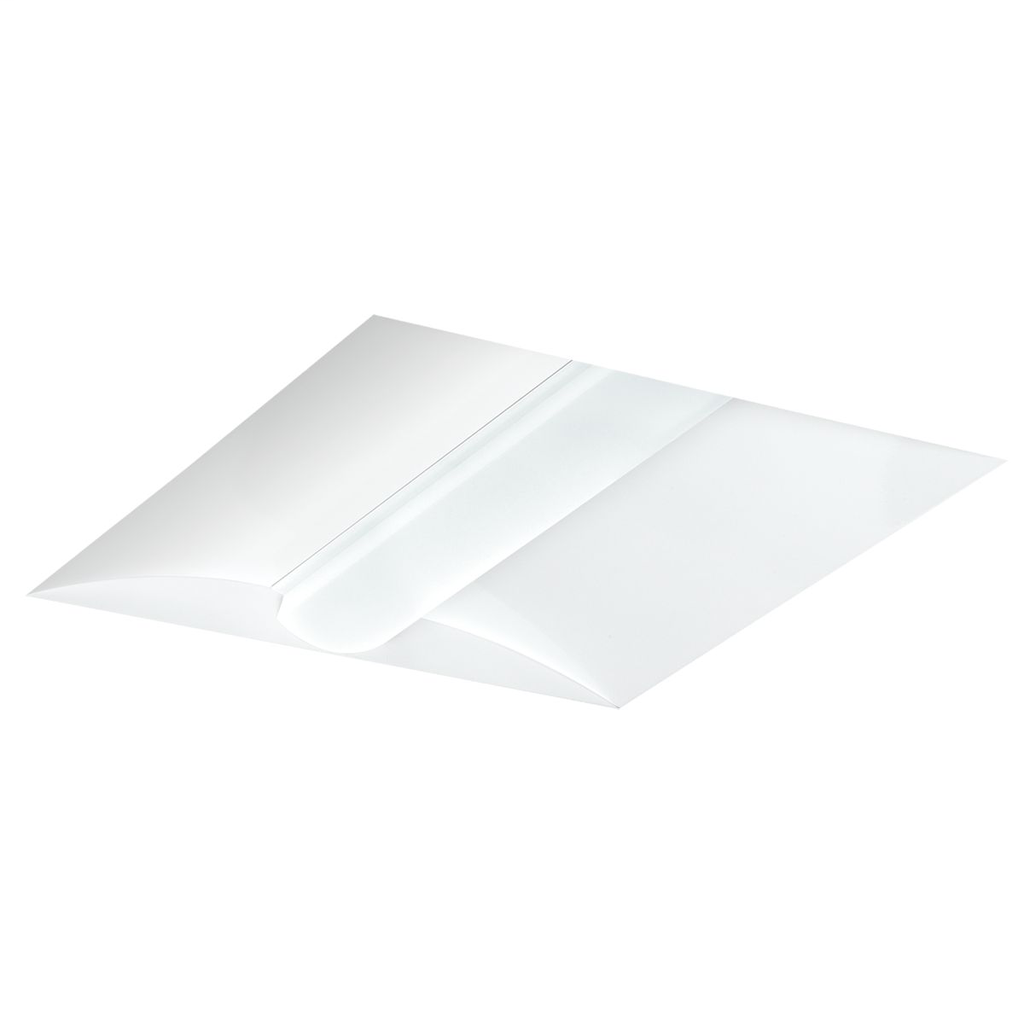

COL CCL22-3335 LED CENTER LENS TROF
Product image thumbnail 0
Product image thumbnail 1
$75.94/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Columbia Lighting
Mfg Catalog # CCL22-3335
North Coast Part # 1834785

Features

  • Available in 2’x2’ or 2’x4’
  • 3,300 - 5,000 lumens
  • Up to 118 lumens per watt
  • Choice of two color temperatures
  • 0-10V dimming, standard
  • Fully assembled for quick installation
  • Frosted acrylic lens
  • Recessed Mount
  • Universal voltage (120-277V)
  • IC rated
  • 54,000+ hour LEDs at L70 for reduced maintenance
  • Emergency battery backup available
  • 5-Wire Flex available
  • DLC® (DesignLights Consortium) Qualified - see www.designlights.org
  • Five year warranty (terms and conditions apply)

Specifications

General

  • Category General: Recessed
  • Color: White
  • Color Rendering Index (CRI): 80+
  • Construction Material - Main: Steel
  • Dimming Protocol: 0-10V
  • Environmental Conditions: Damp Location
  • Lamp Type: LED
  • Light Source: LED
  • Material - Housing: Steel
  • Max Ambient Temperature: 25 °C
  • Mounting Type: Recessed Ceiling T-Grid
  • New Products: Yes
  • Style: Center-lens troffer
  • Type: Troffers
  • Warranty Length: 5 Year Warranty

Electrical Ratings

  • Lumens Per Watt: 112-118
  • Voltage Rating: 120-277 V

Certifications and Compliance

  • Certification: CSA to UL1598
  • DLC Designation: DLC® (DesignLights Consortium) Qualified - see www.designlights.org
  • Energy Efficient: Yes
  • Industry Standard(s): UL1598 Damp Location

Application

  • Commercial Indoor
  • Classrooms and Offices
  • Halls/Dorms
  • Conference Room
  • Meeting Room
  • Common Areas

Color Temperature

  • 3500 K
  • 4000 K

Wattage

  • 29 W
  • 44 W

Overview

UPC 07853112750
Warranty Length 5 yr
Color White
Voltage 120-277 Volt
Mounting Type Recessed Ceiling T-Grid
Style Center-lens Troffer
Family Brand Name Hubbell
Light Source LED
Color Rendering Index 80+ CRI
