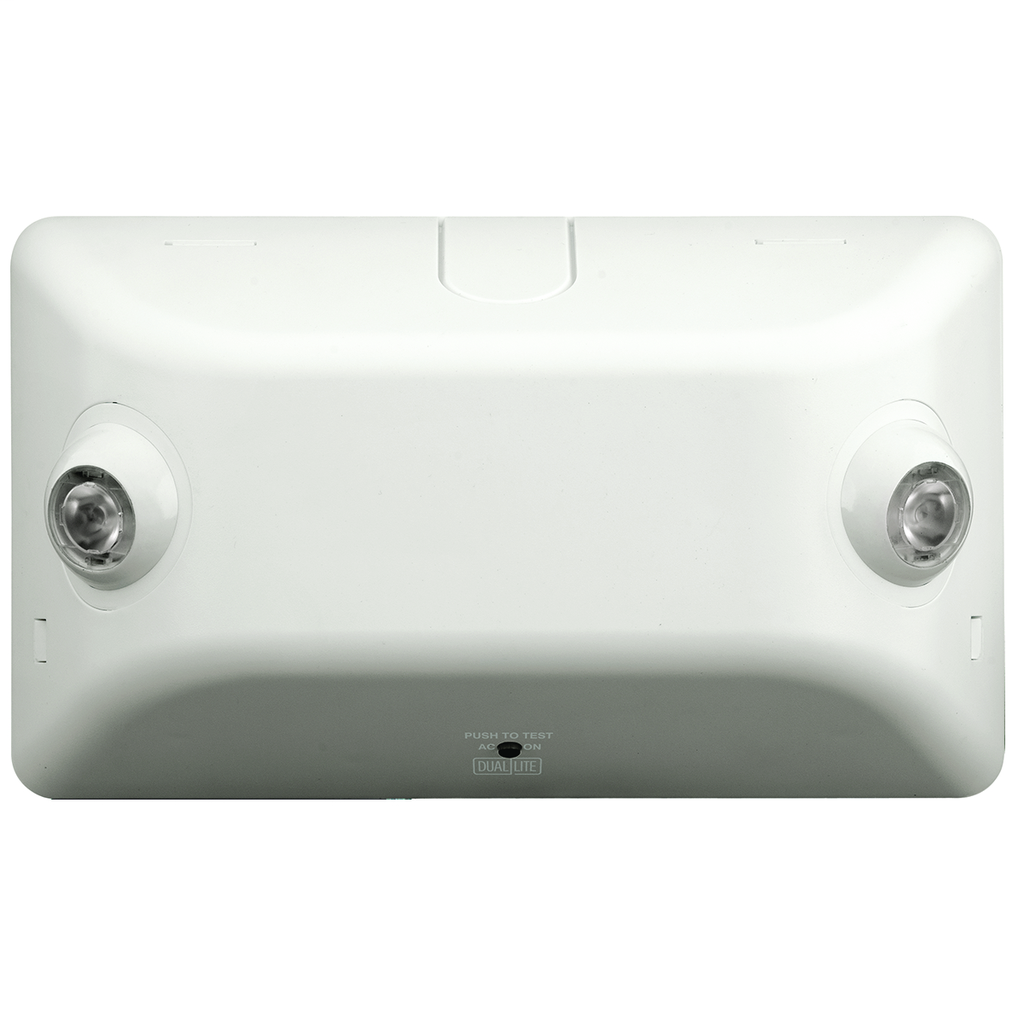

DUAL EV2DB 2LED 1W EMER LT

Features

• Architectural LED based emergency light for wall or ceiling commercial application
• Standard EV model has 20' spacing, optional -02L model increases spacing to 33' on a 6' path
• High impact, flame rated and UV stable white thermoplastic housing
• The EV series includes the EVR – 2 LED remote as an accessory
• Fully adjustable high output LED lamp-heads
• Environmentally Friendly Nickel Metal Hydride Battery
• Top mount conduit entry
• Remote capacity models have a minimum run-time of 120 minutes when no remotes are installed
• Optional - Damp location listed
• Optional - Self-Test/Self-Diagnostics
• Optional - Black Finish
• Optional - ​220-240 VAC Input
• Accessories - EVR2- 2 LED Remote
• Accessories - WGLZ- Wire Guard
• Accessories - VRS3- Vandal Resistant Shield
• UL 924 Listed
• NFPA 101 (Life Safety Code)
• NFPA 70 (National Electrical Code)
• OSHA Illumination Standards
• RoHS

Specifications

General

• Construction Material - Main: thermoplastic
• Environmental Conditions: Damp Location
• Lamp Type: LED
• Light Source: LED
• Material - Housing: Non Metallic
• Series: EV emergency light
• Type: Emergency and Exit

Certifications and Compliance

• Compliance: CEC T20 Compliant

Ambient Temp. Range

• 20 to 30 °C
• 68 to 86 °F
• Damp: 10 to 40 °C
• Damp: 50 to 104 °F

Application

• Conditioned Space
• Damp location

Color

• White
• Black

Listings

• UL
• UL 924

Warranty Length

• LED Lifetime Warranty
• EV Full 3 Year Warranty
• EV with Spectron® Full 5 Year Warranty

Industry Standard(s)

• Damp Listed
• NFPA 101
• NFPA 70
• UL 924
