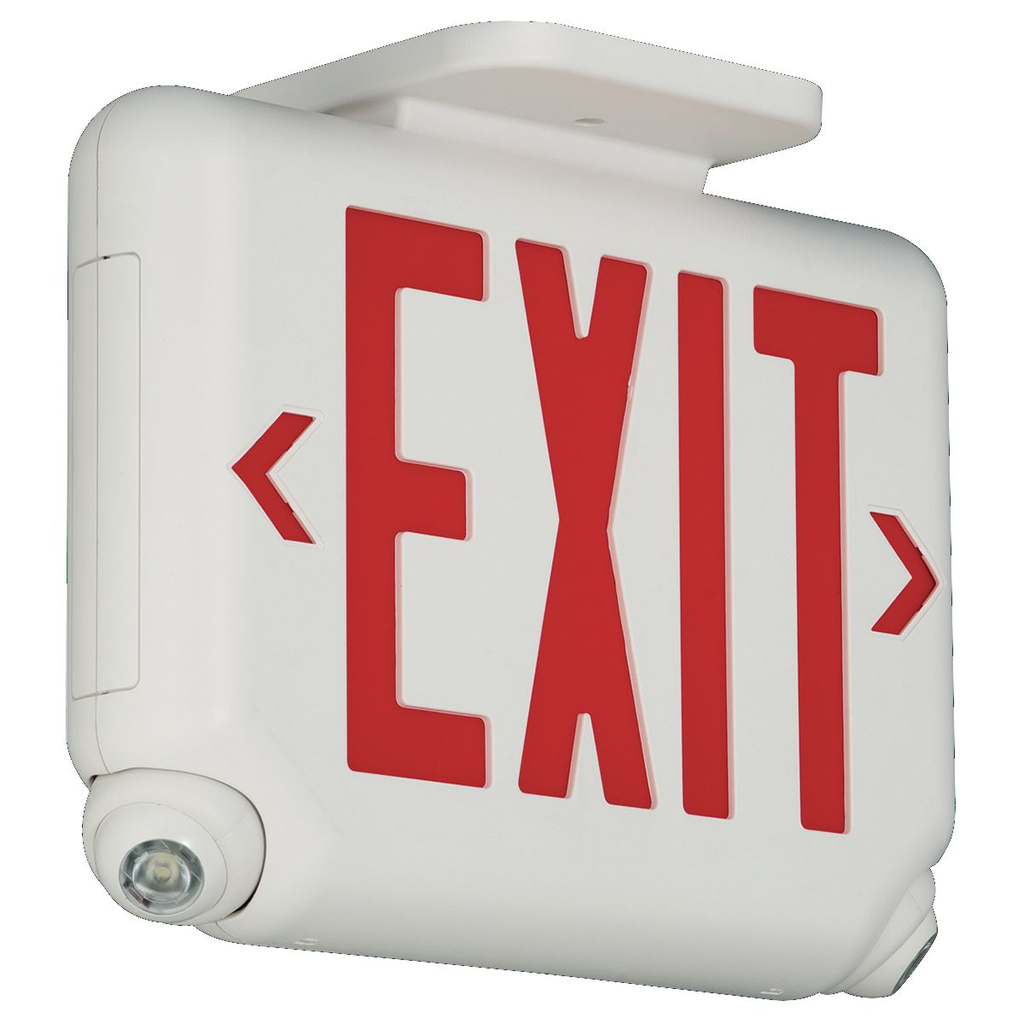

DUAL EVCUGWD4 CMBO EXIT&EMG LT
$249.69/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Dual-Lite
Mfg Catalog # EVCUGWD4
North Coast Part # 933183

Features

  • Architectural LED based exit and emergency light for wall, ceiling or end mounting commercial applications.
  • High impact, flame rated and UV stable white thermoplastic housing.
  • Fully aimable, dual-racheting high output LED lamp-heads.
  • Environmentally friendly, long life-cycle Lithium Iron Phosphate battery.
  • UL924 Listed(optional damp location listed).
  • US Patent Pending.
  • Options.
  • Damp Location Listed.
  • Self-Test/Self-Diagnostics.
  • Black Finish.
  • 220-240VAC Input
  • Accessories
  • EV Unit
  • EVR2 and EVO LED Remotes
  • VRS3 - Vandal Resistant Shield

Specifications

  • Ambient Temp. Range: (68°F to 86°F) 20°C to 30 °C;Damp: (50°F to 104°F) 10°C to 40 °C
  • Application: Conditioned Space;Damp location
  • Battery Type: Lithium Iron Phosphate
  • Certified Listed: Certified to UL924 Standards;Damp Location Standards (optional);NFPA 101 (Life Safety Code);NFPA 70 (National Electrical Code);UL 924
  • Color: white
  • Compliance: CEC T20 Compliant
  • Construction Material - Main: Thermoplastic
  • Dimensions: 12.0000 in x 2.5500 in x 9.0000 in
  • Discontinued: No
  • DisplayBaseProduct: Yes
  • Environmental Conditions: Damp Location
  • Finish Type: Textured
  • Increment Qty Override: No
  • Industry Standard(s): Listed to UL924 Standard, NFPA 101, NFPA 70, Damp Location Listed Optional
  • Input Voltage: 120/277 V;220-240 V
  • Lamp Type: LED
  • Lamp Wattage: 1.65;2.42
  • Light Source: LED
  • Listings: UL;UL 924
  • Material - Housing: Thermoplastic
  • Minimum Order Quantity: 1 EA
  • Mounting Type: Ceiling or End Mount
  • Number of Lamps: 2
  • On Website: Yes
  • Operation: emergency operation
  • Owning division: 5E
  • PLP Sequence: 9
  • Product Family: EVC Series architectural LED combination exit / emergency light
  • Product Name: EVCUGWD4
  • Quote Online - Web: No
  • Sales Org: C510
  • SAP Material Number: 93041422
  • Type: Exit sign / emergency light
  • Voltage Rating: 120-277 VAC
  • Web Show Inventory: Yes
  • WebShowPrice: No
  • Wording On Sign: EXIT
  • UNSPSC: 39111707

Overview

UPC 78252086641
Voltage 120/277 Volt
Input Voltage 220-240 V
Family Brand Name Hubbell
