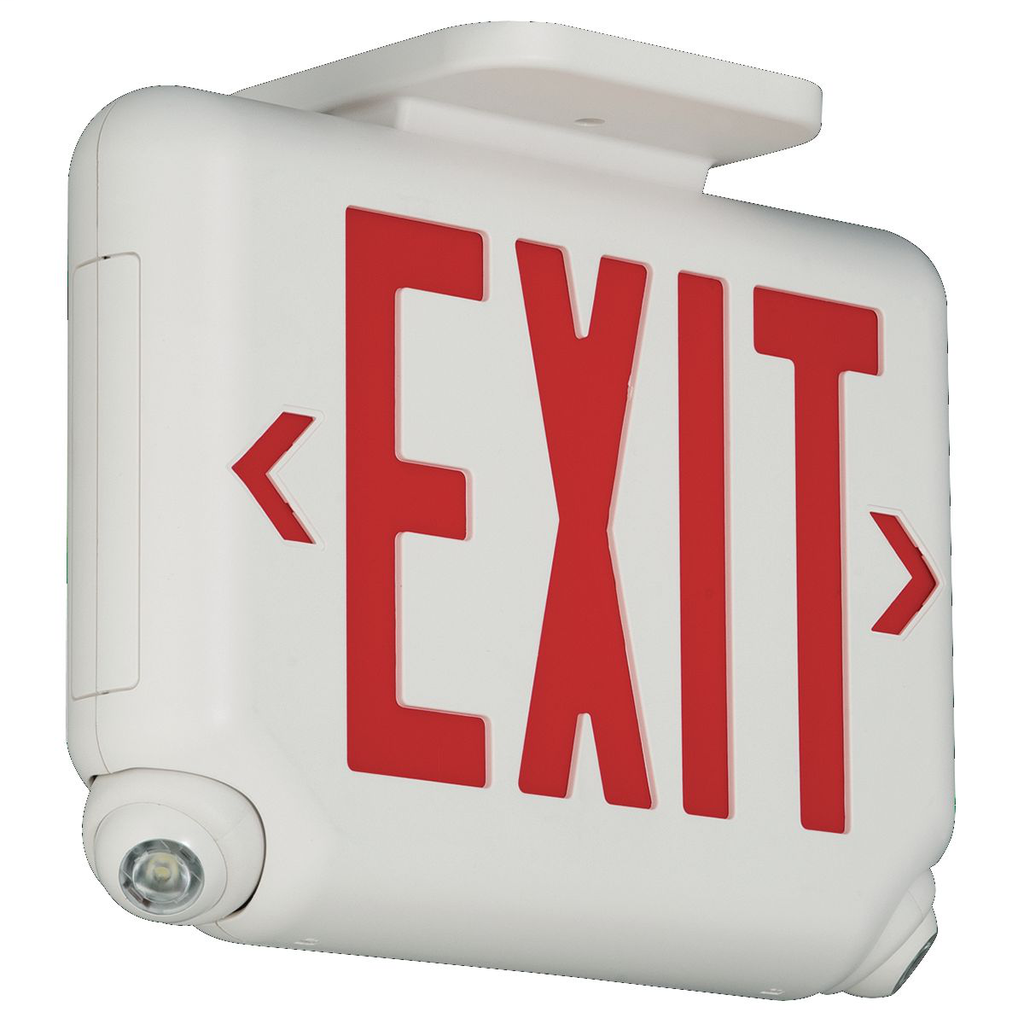

DUAL EVCURWD4 CMBO EXIT&EMG LT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$269.16/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Dual-Lite
Mfg Catalog # EVCURWD4
North Coast Part # 933182

Features

  • Architectural LED based exit and emergency light for wall, ceiling or end mounting commercial applications.
  • High impact, flame rated and UV stable white thermoplastic housing.
  • Fully aimable, dual-racheting high output LED lamp-heads.
  • Environmentally friendly, long life-cycle Lithium Iron Phosphate battery.
  • UL924 Listed(optional damp location listed).
  • US Patent Pending.
  • Options.
  • Damp Location Listed.
  • Self-Test/Self-Diagnostics.
  • Black Finish.
  • 220-240VAC Input
  • Accessories
  • EV Unit
  • EVR2 and EVO LED Remotes
  • VRS3 - Vandal Resistant Shield

Specifications

  • Buy American Compliant: No
  • Country of Origin: CN
  • Dimensions: 12.0000 in x 2.5500 in x 9.0000 in
  • Each - Height: 9.125 in
  • Each - Length: 12.250 in
  • Each - Width: 4.125 in
  • Height: 9.0000 in
  • Industry Standard(s): Listed to UL924 Standard, NFPA 101, NFPA 70, Damp Location Listed Optional
  • Length: 12.0000 in
  • Application: Conditioned Space; Damp location
  • Battery: Lithium Iron Phosphate
  • Battery Runtime: 90
  • Color: white
  • Environmental Conditions: Damp Location
  • Fixture Type: Exit sign / emergency light
  • Housing Color: white
  • Lamp Type: LED
  • Lamp Wattage: 1.65, 2.42
  • Letter Color: red
  • Material: Thermoplastic
  • Mounting: Ceiling or End Mount
  • Number Of Lamps: 2
  • Size: 12.0000 in x 2.5500 in x 9.0000 in
  • Standard: Listed to UL924 Standard, NFPA 101, NFPA 70, Damp Location Listed Optional
  • Type: Exit sign / emergency light
  • Voltage Rating: 120-277 VAC
  • Wattage: 1.65; 2.42
  • Width: 2.5500 in

Certifications

  • Certified Listed: Certified to UL924 Standards;Damp Location Standards (optional);NFPA 101 (Life Safety Code);NFPA 70 (National Electrical Code);UL 924
  • EU RoHS Indicator: Contact Manufacturer
  • Listings: UL;UL 924

Overview

Voltage 120/277 Volt
Input Voltage 120/277 V
Family Brand Name Hubbell
Product UPC 78252086640
Length 12 Inch
Width 2.550 in
Height 9 Inch
Country of Origin China
