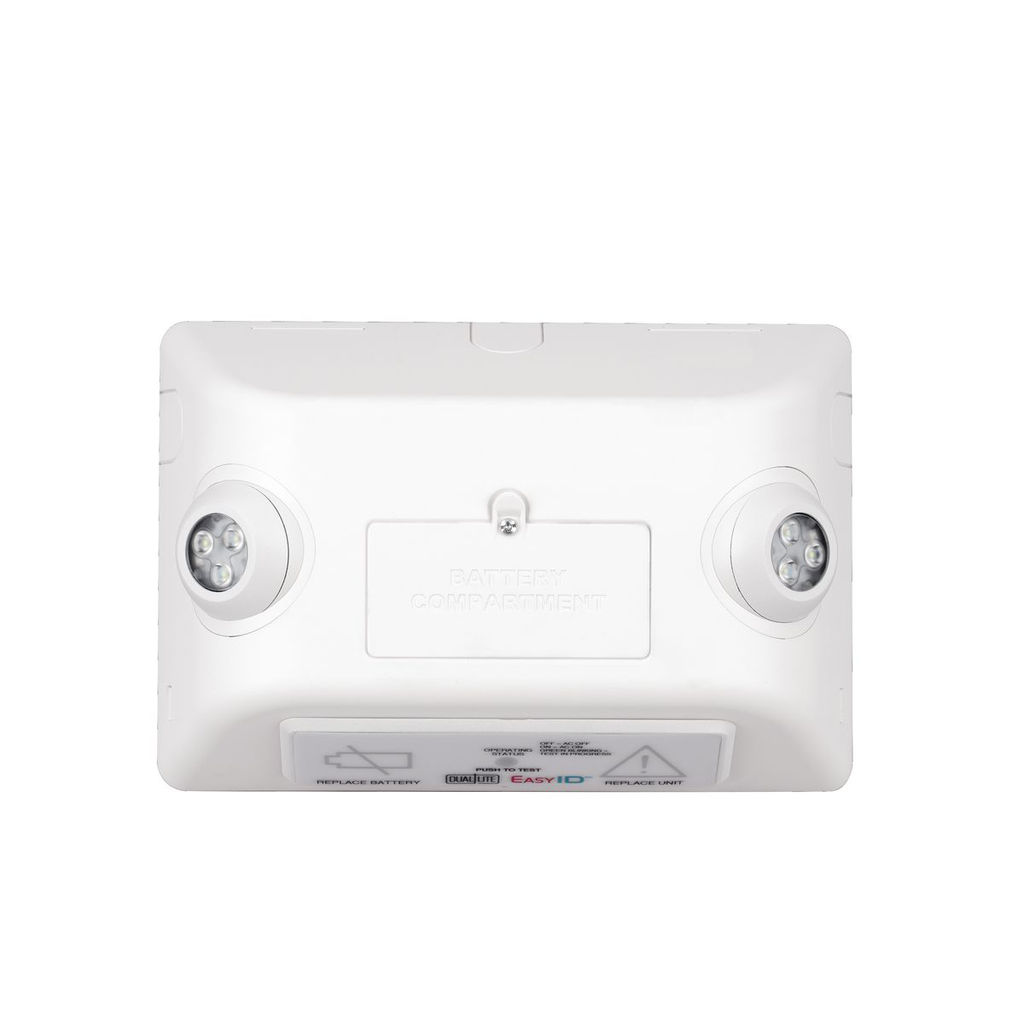

DUAL EVHC12ID-06L LED EMG LT FX

Features

• The EVHC series is a high lumen output emergency lighting unit designed for high mounting height applications
• Available with standard 346 lumen lamp
• High lumen option of 546 lumens per head
• Standard model offers 51' spacing on a 10' mounting height
• high lumen option offers 75'
• Fully Adjustable High-Output LED Lamps
• High impact, flame rated and UV stable thermoplastic housing
• Conduit entry from the top and both sides
• Flashing trouble code for “"Battery Disconnect”" or "“Charger Fault"” on Standard Model
• EasyID option includes battery compartment and highly visible fault code status panel with Self-Test/Self-Diagnostics
• Optional Battery Compartment
• Optional: Self-Test/Self-Diagnostics
• Optional: High Lumen- 6W Lamps
• Accessory: EVHCR2 Double Head Matching Remote
• Remote capacity models have a minimum run-time of 120 minutes when no remotes are installed

Specifications

General

• Ambient Temp. Range: Damp Listed: (50°F to 104°F) 10°C to 40 °C
• Environmental Conditions: Damp Location
• Lamp Type: LED
• Light Source: LED
• Material - Housing: Thermoplastic
• Mount location: wall or ceiling
• New Products: Yes
• Series: EVHC emergency light
• Type: Emergency and Exit

Certifications and Compliance

• Compliance: CEC T20 Compliant

Application

• Conditioned Space
• Damp location

Color

• White
• Black

Listings

• UL
• UL 924

Lumens

• Standard: 346 Lumen lamp heads
• Optional: 546 Lumen lamp heads

Certified Listed

• Certified to UL924 Damp Location Standards
• NFPA 101 (Life Safety Code)
• NFPA 70 (National Electrical Code)
