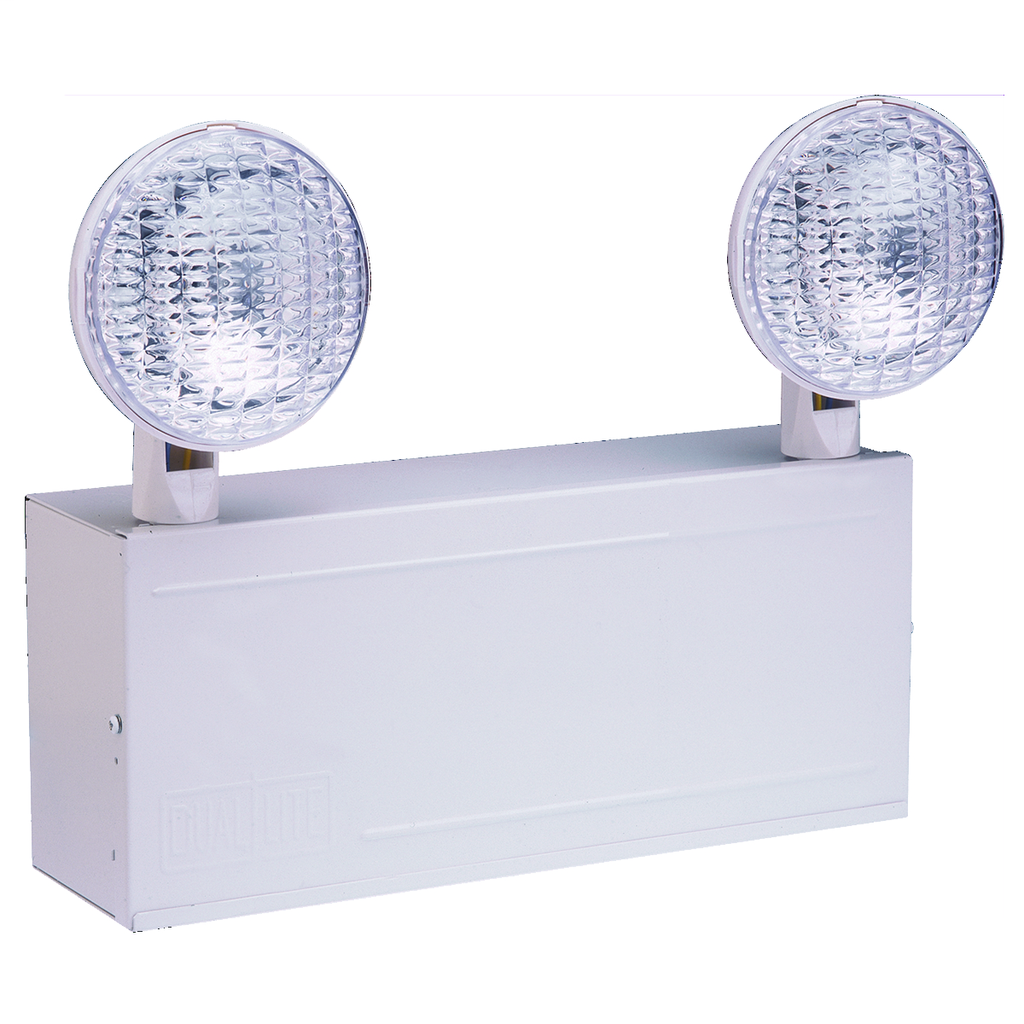

DUAL LM33 6VDC HI-CAP EMRG LT

Features

• LM2-03L, LM33-03L and LM33I-03L include 3W LED lamp-heads
• White, corrosion-resistant metal housing and front-loading cover
• Choice of lead-calcium or nickel-cadmium maintenance-free batteries
• Capacities up to 130 watts
• Lampheads may be top or side mounted
• City of Chicago approved models available
• Low-voltage battery disconnect
• 3-Conductor AC Line Cord

Specifications

General

• Battery Type: Lead Calcium or Nickel-Cadmium (maintenance-free)
• Category General: Emergency Light
• Chicago Plenum: Yes
• Color: White
• Environmental Conditions: Damp Location
• Finish Type: White, Corrosion Resistant Metal Housing
• Lamp Included: Yes
• Material - Housing: Steel
• Max Ambient Temperature: 40 °C
• Min Ambient Temperature: 10 °C
• Series: LM series emergency light
• Type: Emergency and Exit

Ambient Temp. Range

• Standard (68°F - 86°F) 20°C - 30 °C
• Damp Location model: (50°F - 104°F) 10°C - 40 °C
• NiCad models: (68°F 86°F) 20°C - 30 °C

Application

• Conditioned Space
• Damp location

Lamp Type

• 3W LED included with LM2-03L, LM33-03L and LM33I-03L
• Two 7.2 watt Incandescent standard
• Halogen

Light Source

• LED
• Incandescent

Listings

• UL
• UL 924

Number of Lamps

• Two emergency lighting heads supplied standard
• Available without lamp heads
• Available with up to 4 lamp heads

Voltage Rating

• 120 V
• 277 V

Certified Listed

• NFPA 101 (Life Safety Code)
• NFPA 70 (National Electrical Code)
• Listed to UL 924 Damp Location
