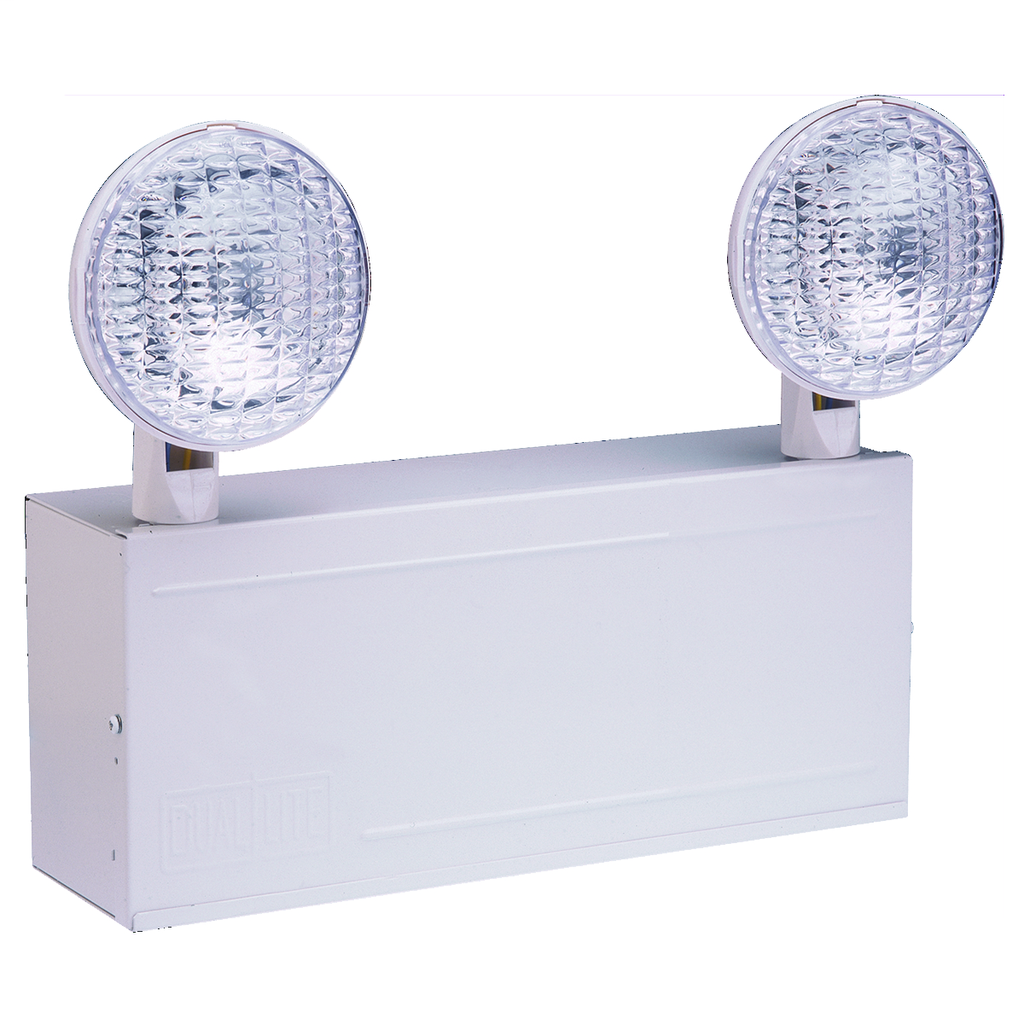

DUAL LM66I 6V 66W WHT EMERG LTG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$722.64/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Dual-Lite
Mfg Catalog # LM66I
North Coast Part # 545814

Features

  • Universal wall mounting pattern.
  • White, corrosion-resistant metal housing and front-loading cover.
  • Choice of lead-calcium or nickel-cadmium maintenance-free batteries.
  • Two emergency lighting heads supplied standard.
  • Incandescent 7.2 watt standard lamps.
  • Capacities up to 130 watts.
  • Lampheads may be top or side mounted.
  • City of Chicago approved models available.
  • Low-voltage battery disconnect.
  • Options.
  • Available with Spectron┬« self-testing/self-diagnostic electronics with time-delay retansfer (TDR) standard
  • Damp Location Listed models available
  • Voltmeter
  • Unit supplied without lamp heads
  • Units supplied with up to four heads
  • Spectron self-diagnostic testing

Specifications

  • Buy American Compliant: No
  • Category General: Emergency Light
  • Country of Origin: CN
  • Dimensions: 15.7500 in x 4.7500 in x 13.5000 in
  • Each - Height: 7.250 in
  • Each - Length: 16.250 in
  • Each - Width: 14.685 in
  • Height: 13.5000 in
  • Industry Standard(s): UL 924 Listed (optional damp location listed)
  • Length: 15.7500 in
  • Application: Conditioned Space; Damp location
  • Battery: Lead Calcium
  • Color: White
  • Environmental Conditions: Damp Location
  • Fixture Type: High Capacity Emergency Light
  • Lamp Type: PAR 36
  • Lamp Wattage: 66
  • Mounting: Universal wall mounting pattern
  • Number Of Lamps: 2
  • Size: 15.7500 in x 4.7500 in x 13.5000 in
  • Special Features: Spectron self-diagnostic testing
  • Standard: UL 924 Listed (optional damp location listed)
  • Type: High Capacity Emergency Light
  • Voltage Rating: 120/277 VAC
  • Wattage: 66 W
  • Width: 4.7500 in

Certifications

  • Certified Listed: NFPA 101 (Life Safety Code);NFPA 70 (National Electrical Code);Listed to UL 924 Damp Location
  • EU RoHS Indicator: Contact Manufacturer
  • Listings: UL;UL 924

Overview

UPC 78252085186
Item Long Description LM Series, Battery Type: Lead Calcium, Color: White, Number of Lamps: 2, Lamp Type: PAR 36, Voltage Rating: 120/277 VAC, Wattage: 66 W.
Finish White, Corrosion Resistant Metal Housing
Color White
Voltage 120/277 Volt
Product Series LM Series Emergency Light
Mounting Type Universal Wall Mounting Pattern
Family Brand Name Hubbell
Lamp Type PAR36
Number of Lamps 2
Fixture Type High Capacity Emergency Light
