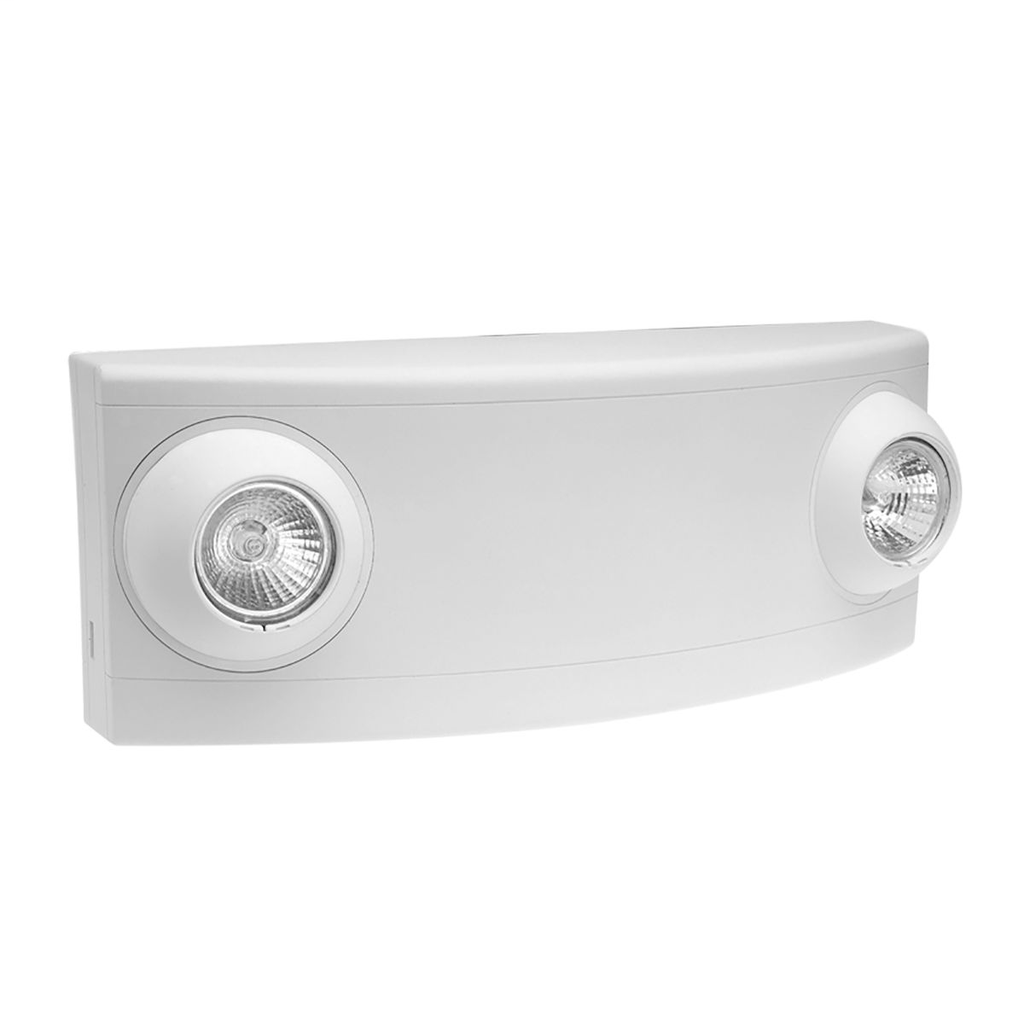

DUAL LZ30-10W 6V 30W WH HS EMER LTG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$342.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Dual-Lite
Mfg Catalog # LZ30-10W
North Coast Part # 600767

Features

  • Standard 5 watt halogen lamps
  • Optional 3 Watt LED MR16 lamps
  • UV stable thermoplastic housing
  • White finish standard
  • Snap-together design
  • Mounts to electrical boxes up to 4'' square
  • Remote capacity available in models up to 30 Watts
  • Maintenance-free, premium grade lead-acid battery or optional Nickel-Cadmium battery
  • Low-voltage battery disconnect
  • Options
  • Available with Spectron® self-testing/self-diagnostic electronics with time-delay retansfer (TDR) standard
  • MR16 10 Watt Halogen Lamps
  • MR16 3 Watt LED lamps
  • Black finish
  • Damp location
  • Voltmeter
  • 3-Conductor AC Line Cord (277)
  • Temperature Range
  • Standard models: 20°C to 30°C (68°F to 86°F)
  • Damp location models: 10°C to 40°C (50°F to 104°F)
  • Compliance
  • UL 924 Listed
  • U.S. Patent Nos. D400,991
  • D419,708
  • D400,995
  • 6,280,042
  • 6,019,477
  • Damp location listed
  • NFPA 101 (Life Safety Code)
  • NFPA 70 (National Electrical Code)

Specifications

General

  • Environmental Conditions: Damp Location
  • Series: LZ series emergency light
  • Type: Emergency and Exit

Application

  • Conditioned Space
  • Damp location

Color

  • White
  • Black

Lamp Type

  • LED
  • Incandescent

Light Source

  • LED
  • Incandescent

Listings

  • UL
  • UL 924

Industry Standard(s)

  • NFPA 101
  • NFPA 70

Overview

UPC 78252085136
Color White
Voltage 120/277 Volt
Product Series LZ Series Emergency Light
Mounting Type 4 IN Octagon Or 4 IN Square Boxes.,Unit Mounts To 3 1/2 IN
Standard UL 924 Listed (optional Damp Location Listed) NFPA 70 NFPA 101 ADA Compliant (LZ Standard Models Only)
Family Brand Name Hubbell
Lamp Type 10W Halogen Lamps
Number of Lamps 2
Fixture Type Emergency Light
