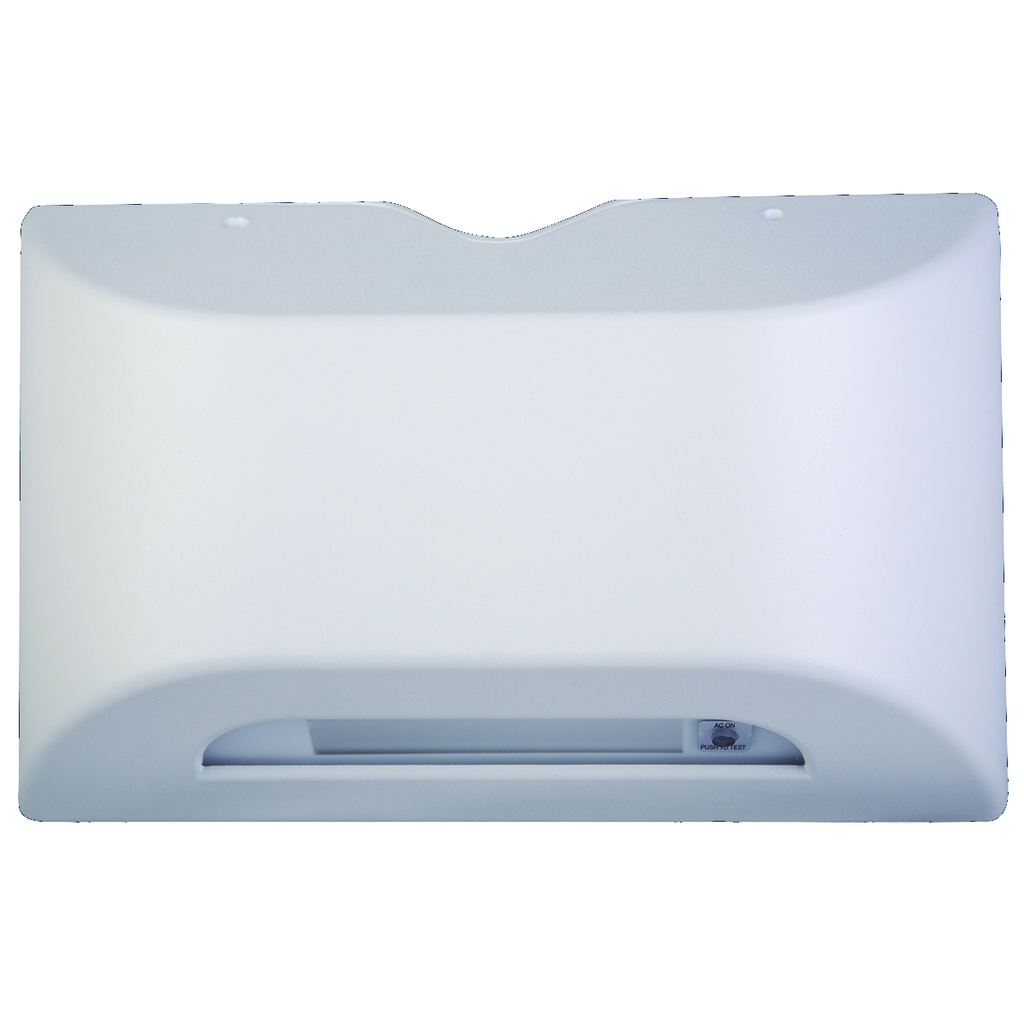

DUAL PGP SIL GRAY EMER UNIT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$499.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Dual-Lite
Mfg Catalog # PGP
North Coast Part # 602808

Features

  • Wet location listed emergency lighting unit for indoor/outdoor installation.
  • Four long-life, high-output LEDs.
  • LEDs configured in redudant pairs.
  • Design optimized wide area illumination patterns.
  • No heads to aim, no adjustments to make.
  • Includes Spectron┬« self-testing/self-diagnostic electronics with time-delay retransfer (TDR) standard.
  • Sturdy die-cast aluminum construction.
  • Time delay retransfer circuit.
  • Brownout detection circuit.
  • Low Voltage Battery Disconnect.
  • Universal 120/277 VAC operation
  • 90 minute emergency operation
  • Microprocessor controlled battery environmental chamber
  • Fast, easy installation
  • Standard electrical box and conduit entry provisions

Specifications

  • Buy American Compliant: No
  • Country of Origin: CN
  • Dimensions: 11.0000 in x 3.1875 in x 7.0000 in
  • Each - Height: 4.500 in
  • Each - Length: 13.000 in
  • Each - Width: 8.250 in
  • Height: 7.0000 in
  • Industry Standard(s): UL 924 Listed (emergency models only) UL Wet Location Listed NFPA 101 Life Safety Code NFPA 70 National Electrical Code OSHA
  • Length: 11.0000 in
  • Application: Damp location; Wet location; Cold Temperature
  • Color: Platinum Silver
  • Environmental Conditions: Wet Location
  • Fixture Type: Emergency Light
  • Lamp Type: Solid state high output LEDs
  • Lamp Wattage: 3
  • Mounting: Wall Mount
  • Number Of Lamps: 4
  • Size: 11.0000 in x 3.1875 in x 7.0000 in
  • Standard: UL 924 Listed (emergency models only) UL Wet Location Listed NFPA 101 Life Safety Code NFPA 70 National Electrical Code OSHA
  • Type: Emergency Light
  • Voltage Rating: 120/277 VAC
  • Wattage: 3
  • Width: 3.1875 in

Certifications

  • Certified Listed: UL 924 Listed
  • EU RoHS Indicator: Contact Manufacturer

Overview

Color Gray
Voltage 120/277 Volt
Product Series PG Series Emergency Light
Mounting Type Wall Mount
Standard UL 924 Listed (emergency Models Only) UL Wet Location Listed NFPA 101 Life Safety Code NFPA 70 National Electrical Code OSHA
Family Brand Name Hubbell
Lamp Type LED
Number of Lamps 4
Fixture Type Emergency Light
Light Source LED
Product UPC 78252086208
Length 11 Inch
Width 3.187 in
Height 4-1/2 Inch
Country of Origin China
