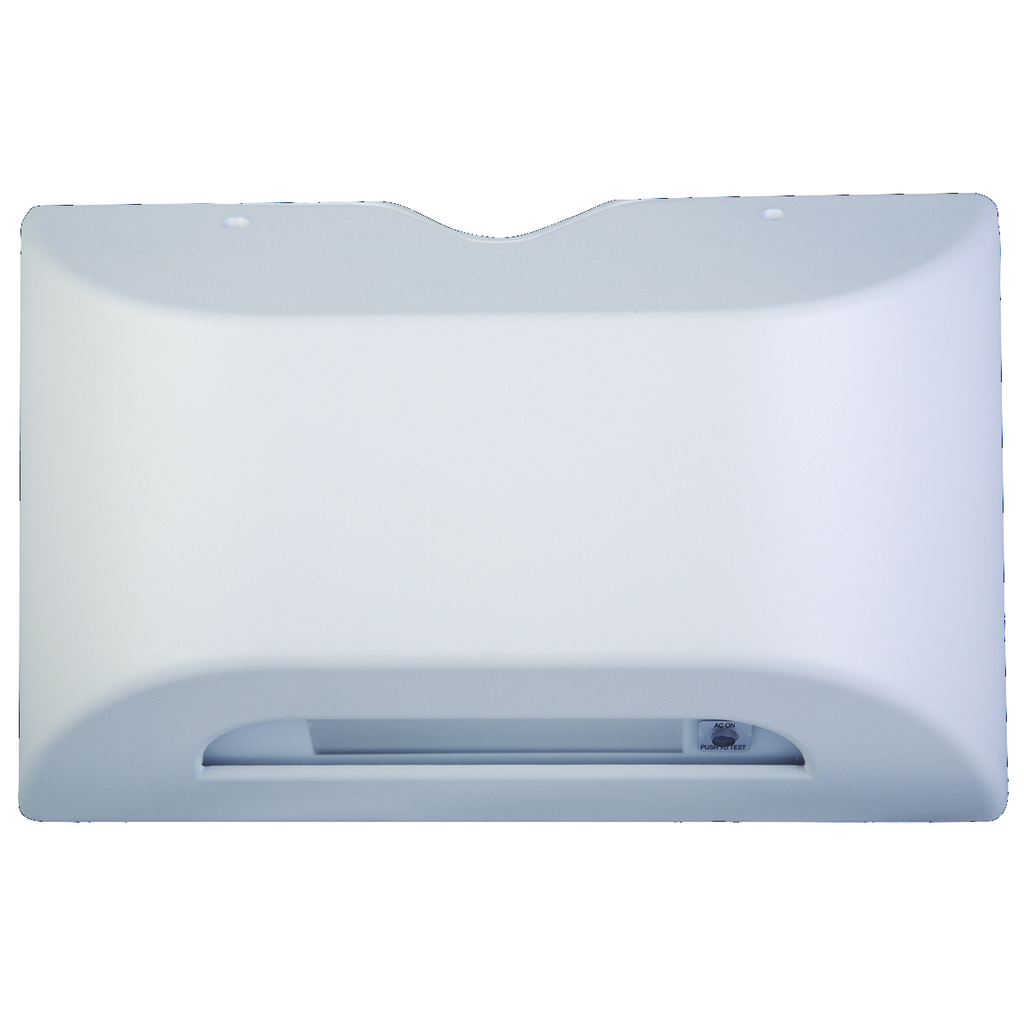

DUAL PGW WHT EMER UNIT

Features

• Wet location listed emergency lighting unit for indoor/outdoor installation
• Four long-life, high-output LEDs
• LEDs configured in redundant pairs
• Design optimized wide area illumination patterns
• No heads to aim, no adjustments to make
• Includes Spectron® self-testing/self-diagnostic electronics with time-delay retransfer (TDR) standard
• Sturdy die-cast aluminum construction
• Time delay retransfer circuit
• Brownout detection circuit
• Low Voltage Battery Disconnect
• Universal 120/277 VAC operation
• 90 minute emergency operation
• Microprocessor controlled battery environmental chamber
• Fast, easy installation
• Standard electrical box and conduit entry provisions
• Maintenance-free sealed Nickel-Cadmium battery pack
• Test switch and AC-ON indicator

Specifications

General

• Environmental Conditions: Wet Location
• Lamp Type: LED
• Light Source: LED
• Material - Housing: Die-Cast Aluminum
• Max Ambient Temperature: 50 °C
• Min Ambient Temperature: -30 °C
• Series: PG series emergency light

Certifications and Compliance

• Certified Listed: UL 924 Listed

Application

• Damp location
• Wet location
• Cold Temperature

Color

• Dark Bronze
• Platinum Silver
• White
• Black

Type

• Outdoor Area and Site
• Emergency and Exit

Voltage Rating

• 120 V
• 277 V
