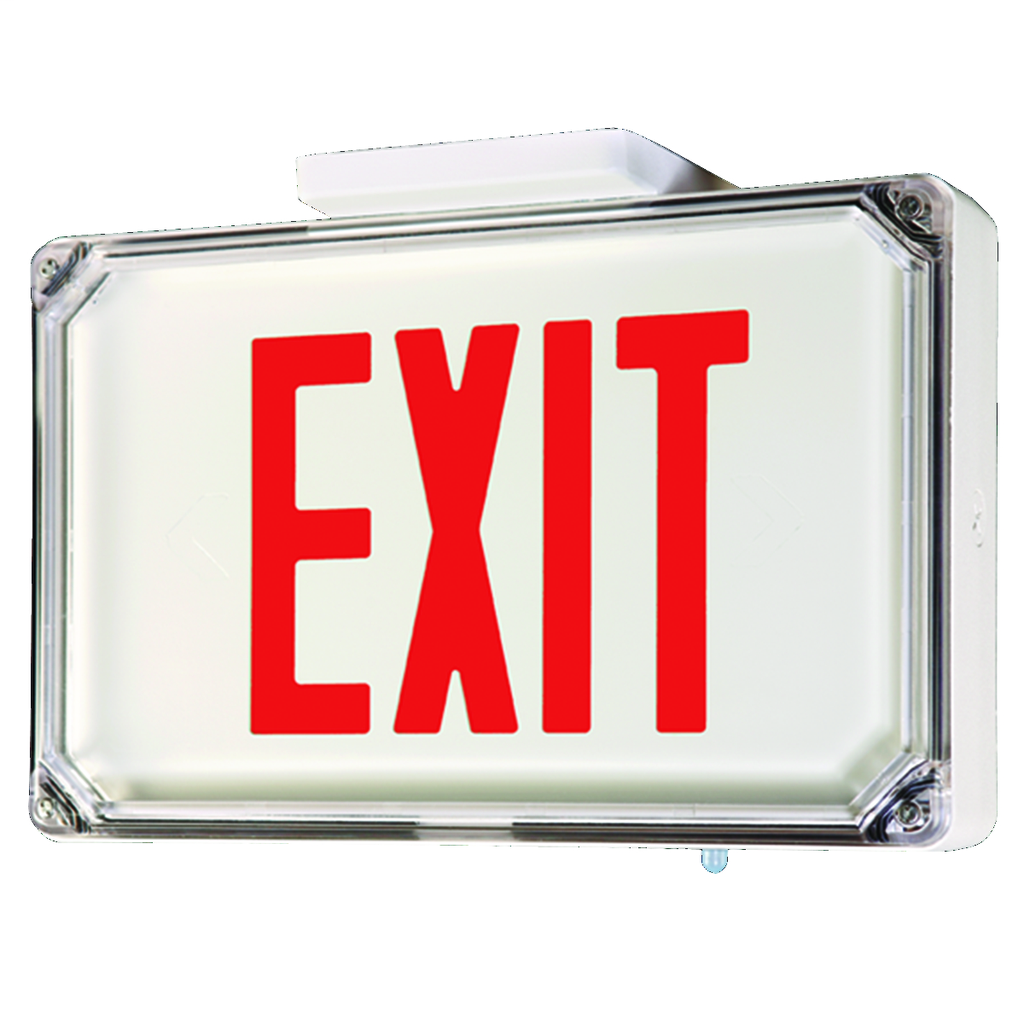

DUAL SEWLDGBE D/C AL LED EXIT SIGN

Features

• Rugged, .500" thick, heavy duty die-cast aluminum construction
• Clear polycarbonate shield provides exit legend protection
• Vandal resistant stainless steel hardware (Optional Accessory)
• AC On Indicator Light
• Black or white finish
• Red or green letter models
• Single or double face configurations
• Field programmable break-out chevron directional arrows
• Top and side conduit entry provisions
• Universal 120/277VAC operation

Specifications

General

• Ingress Protection: IP66
• Lamp Type: LED
• Light Source: LED
• Material - Housing: Die-Cast Aluminum
• Max Ambient Temperature: 50 °C
• Min Ambient Temperature: -30 °C
• Type: Emergency and Exit

Certifications and Compliance

• Compliance: CEC T20 Compliant
• Nema Rating: NEMA 4X

Application

• Conditioned Space
• Damp location
• Wet location
• NEMA 4X
• Cold Temperature

Color

• White
• Black

Environmental Conditions

• Damp Location
• Wet Location

Listings

• UL
• UL 924

Voltage Rating

• 120 V
• 277 V

Industry Standard(s)

• Damp Listed
• NFPA 101
• NFPA 70
• UL 924
• UL 924 Listed for Damp Locations (0°C to 50°C)
• Wet Listed
