HCI 02217015 HD UNI EYE SERV DRP, 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$103.01/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 02217015
North Coast Part # 213453

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Multi Weave Closed Mesh

Specifications

  • Approx Breaking Strength: 1,790 lbs
  • Cable Diameter Range: 1.06 in-1.25 in
  • Country of Origin: CN
  • Each - Height: 1.000 in
  • Each - Length: 26.000 in
  • Each - Width: 1.000 in
  • Industry Standard(s): CSA Certified
  • Performance: Mechanical - Approximate Breaking Strength - 1,790 (7,962);Mechanical - Working Load - 179 (796.2) Lbs. (N)
  • Show Add To ProjectList: Yes
  • Application: Single Eye
  • Cable Size: 1.06"-1.25" (2.69-3.17)
  • Special Features: Multi Weave Closed Mesh
  • Standard: CSA Certified
  • Type: Single Eye

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358530772

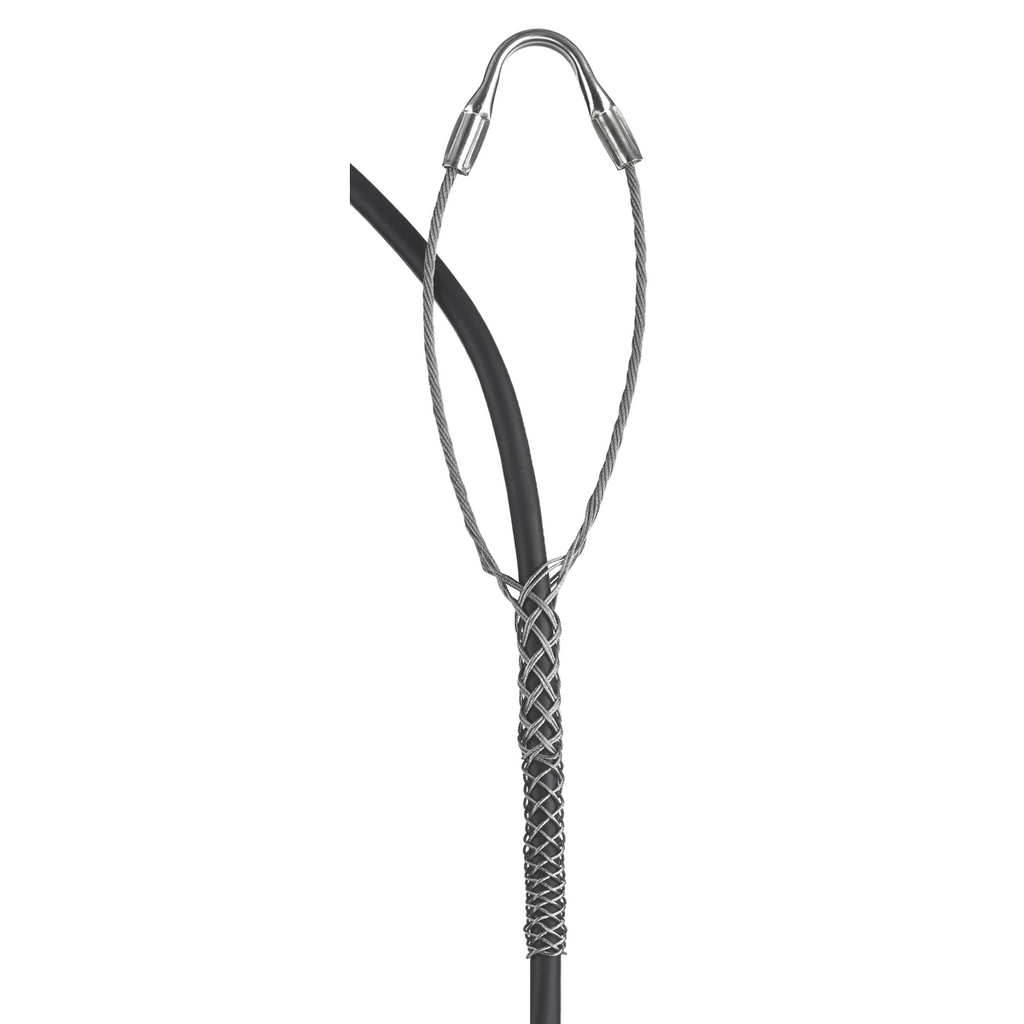

Item Long Description Service Drop Support Grips, Heavy Duty, Single U-Eye, Multi Weave, Closed Mesh, Tin-Coated Bronze, 1.06-1.25"
GTiN 00783585307725
Length 26.000 in
Width 1.000 in
Size Standard Sized
Type Standard, Woven, Multi Weave, Closed Mesh
Material Bronze
Product Series Service Drop,Heavy Duty
Applications Single Eye
Height 1.000 in
Cable Size 1.06 - 1.25 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Woven
Sub Brand Kellems Wire Management
Finish Tin Coated
Standard CSA
Color Metallic
