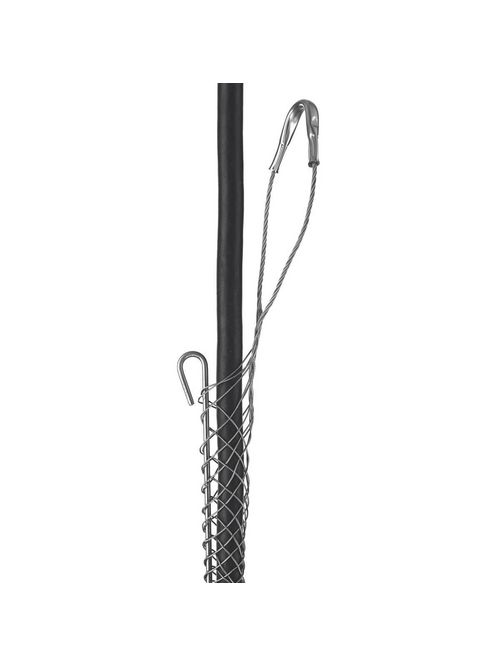

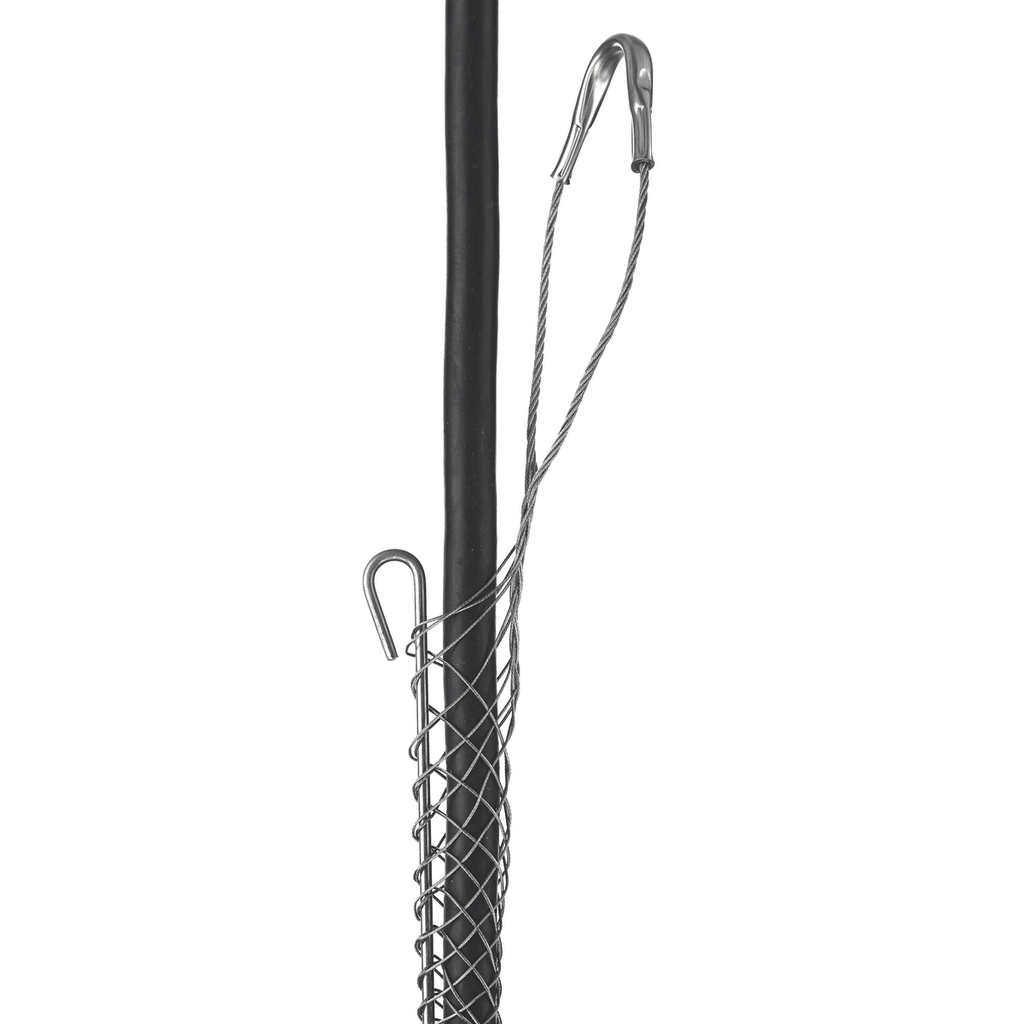

HWDK 02403043 OFF EYE, SUP GRIP, 1.
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$107.52/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 02403043
North Coast Part # 425117

Features

  • Offset eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Rod Closing

Specifications

  • Approx Breaking Strength: 4,500 lbs
  • Cable Diameter Range: 1.5 in-1.74 in
  • Country of Origin: US
  • Each - Height: 2.500 in
  • Each - Length: 25.000 in
  • Each - Width: 3.000 in
  • Industry Standard(s): CSA Certified
  • Performance: Mechanical - Approximate Breaking Strength - 4,500 (20,017);Mechanical - Working Load - 450 (2001.7) Lbs. (N)
  • Show Add To ProjectList: Yes
  • Application: Offset Eye
  • Cable Size: 1.50"-1.74" (3.81-4.42)
  • Special Features: Split Mesh- Rod Closing
  • Standard: CSA Certified
  • Type: Offset Eye

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358531050
Item Long Description Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 1.50-1.74"
GTiN 00783585310503
Length 25.000 in
Width 3.000 in
Size Standard Sized
Type Standard, Woven, Split Mesh, Rod Closing
Material Stainless Steel
Product Series Standard Duty
Applications Offset Eye
Height 2.500 in
Cable Size 1.5 - 1.74 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Woven
Sub Brand Kellems Wire Management
Standard CSA
Color Metallic
