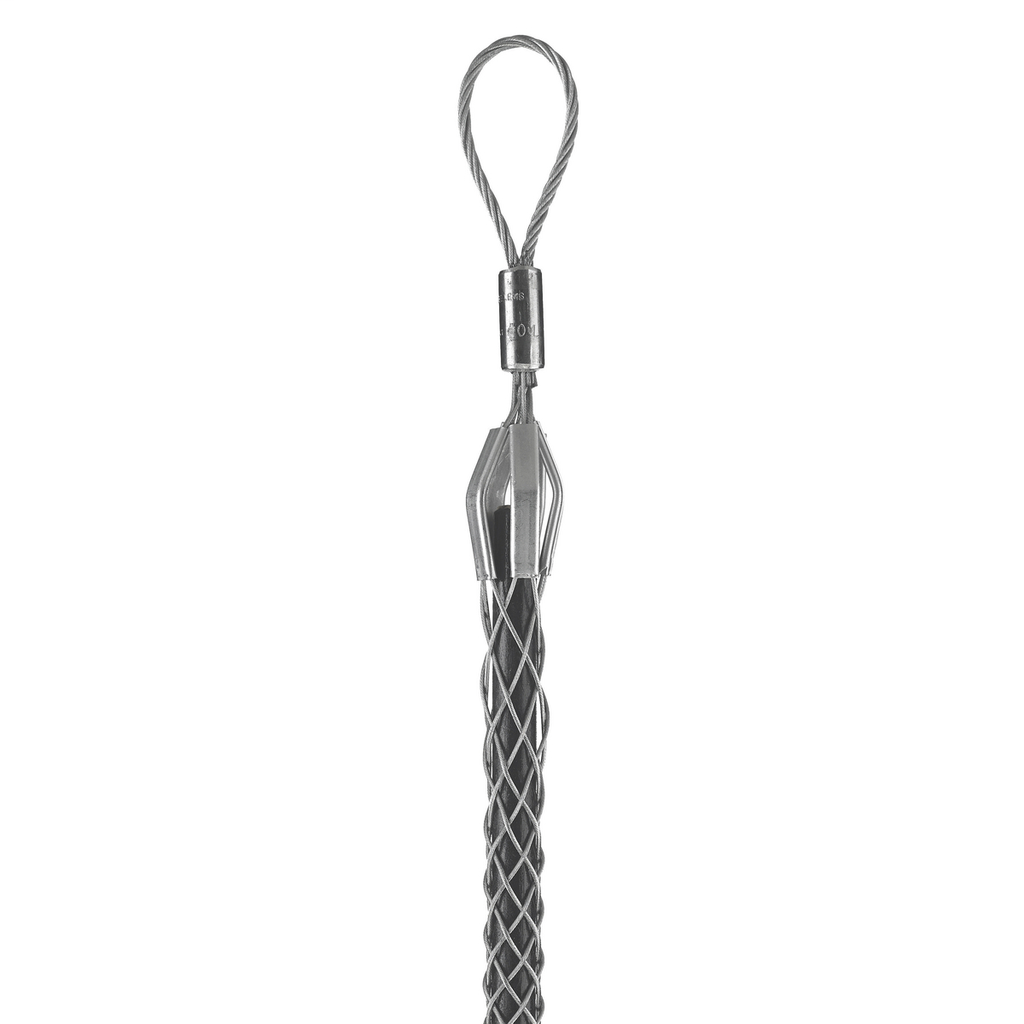

Hubbell Wiring Devices 03303012 0.75 to 0.99 Inch Galvanized Steel Standard Flexible Eye Low Tension Light Duty Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$103.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 03303012
North Coast Part # 153339

Features

  • Flexible eye for easy attachment to pulling line
  • Shoulder protectors protect the grip from abrasion
  • Single weave galvanized steel mesh
  • Shoulders: Aluminum, Lug: Aluminum, Tag: Mylar

Specifications

  • Approx Breaking Strength: 4,000 lbs
  • Cable Diameter Range: 0.75 in-0.99 in
  • Country of Origin: US
  • Each - Height: 1.000 in
  • Each - Length: 30.500 in
  • Each - Width: 1.800 in
  • Industry Standard(s): CSA Certified
  • Performance: Mechanical - Approximate Breaking Strength - 4,000 (17,792) Lbs. (N);Mechanical - Working Load - 800 (3558.4) Lbs. (N)
  • Show Add To ProjectList: Yes
  • Application: General Cable Pulling
  • Cable Size: .75"-.99" (1.90-2.51)
  • Load: 800
  • Special Features: Shoulders: Aluminum, Lug: Aluminum, Tag: Mylar
  • Standard: CSA Certified
  • Type: Flexible Eye, Standard Length

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358531485
Item Long Description Kellems Wire Management, Pulling Grips, Light Duty Flexible Eye,.75-.99", Standard
GTiN 00783585314853
Length 30.500 in
Width 1.800 in
Type Light Duty, Standard, Low Tension, Non-Mounted, Closed Head
Material Woven
Product Series Light Duty Grip
Applications General Cable Pulling
Cable Type UL Listed Circuit Wire
Height 1.000 in
Cable Size 0.75 - 0.99 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Woven
Sub Brand Kellems Wire Management
Standard CSA
