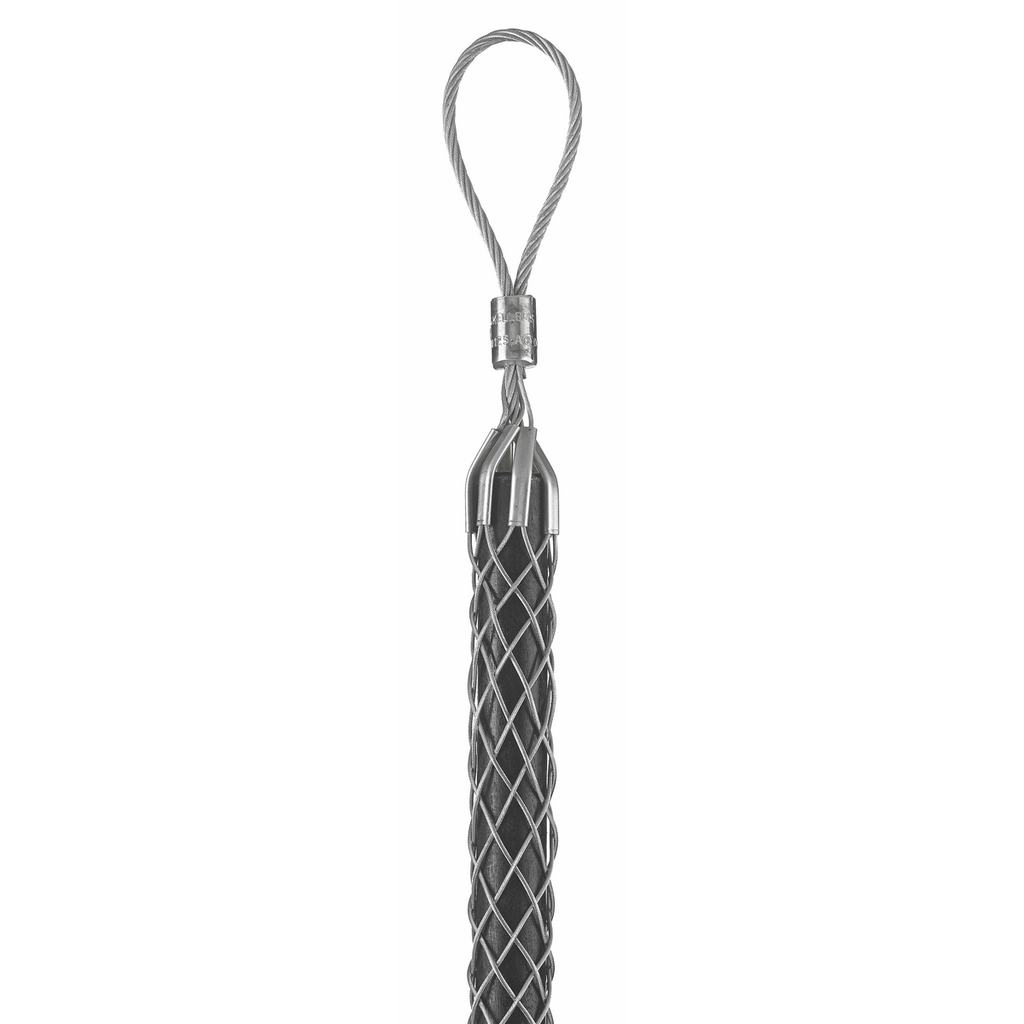

HCI 03303018 LD FLX EYE PULL GRIP,
Product image thumbnail 0
Product image thumbnail 1
$152.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 03303018
North Coast Part # 153395

Features

  • Flexible eye for easy attachment to pulling line
  • Shoulder protectors protect the grip from abrasion
  • Single weave galvanized steel mesh

Specifications

General

  • Application: General Cable Pulling
  • Approx Breaking Strength: 10,600 lbs
  • Construction: Woven
  • Load Capacity: 2120
  • Material: Steel, Galvanized
  • Material - Mounting Hardware: Non-Mounted
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Mechanical - Approximate Breaking Strength - 10,600 (47,149) Lbs. (N) | Mechanical - Working Load - 2120 (9429.8) Lbs. (N)
  • Series: Light Duty Grip
  • Style: Closed Mesh, Single Weave
  • Type: Flexible Eye, Standard Length
  • UPC: 783585314907

Conductor Related

  • Cable Diameter Range: 2.50 in-2.99 in
  • Cable Size: 2.50"-2.99" (6.35-7.59)
  • Cable Specification: UL Listed Circuit Wire

Certifications and Compliance

  • Industry Standard(s): CSA Certified

Overview

UPC 78358531490
GTiN 00783585314907
Length 40.500 in
Width 2.000 in
Type Light Duty, Standard, Low Tension, Woven
Material Galvanized Steel
Product Series Light Duty Grip
Applications For General Cable Pulling
Cable Type UL Listed Circuit Wire
Height 2.000 in
Cable Size 2.5 - 3 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Woven
Sub Brand Kellems Wire Management
Standard CSA
