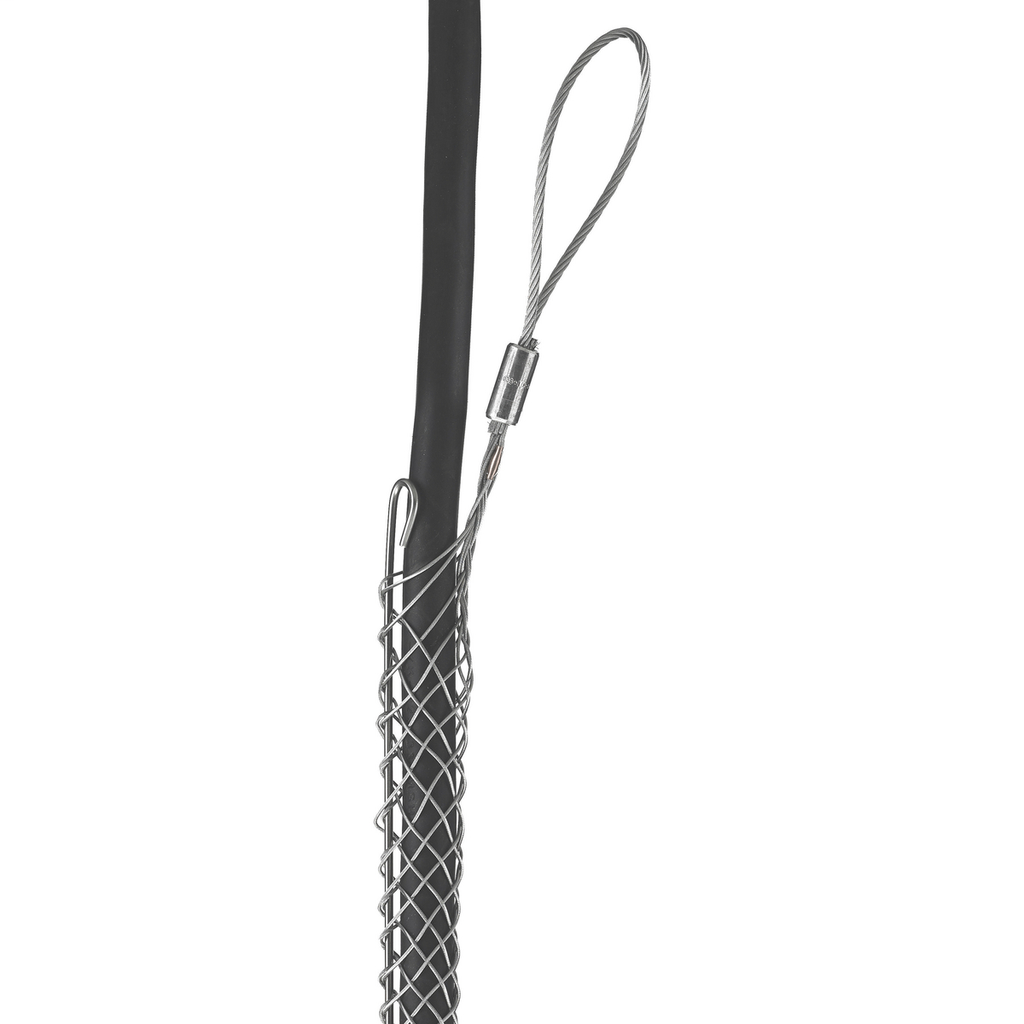

Hubbell Wiring Devices 03310003 0.75 to 0.99 Inch Steel Split Mesh Single Weave Rod Closing Offset Eye Slack Pulling Grip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$77.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 03310003
North Coast Part # 212942

Features

  • Single offset eye for easy attachement to pulling line
  • Rod closing for split lace closure
  • Single weave galvanized steel mesh
  • Lug:Aluminium, Tab: Copper, Rod: Stainless Steel, Tag: Mylar

Specifications

  • Approx Breaking Strength: 2,200 lbs
  • Cable Diameter Range: 0.75 in-0.99 in
  • Country of Origin: US
  • Each - Height: 1.500 in
  • Each - Length: 23.500 in
  • Each - Width: 2.500 in
  • Industry Standard(s): CSA Certified
  • Performance: Mechanical - Approximate Breaking Strength - 2,200 (9,786) Lbs. (N);Mechanical - Working Load - 440 (1957.2) Lbs. (N)
  • Application: General Cable Pulling
  • Cable Size: .75"-.99" (1.90-2.51)
  • Load: 440
  • Special Features: Lug:Aluminium, Tab: Copper, Rod: Stainless Steel, Tag: Mylar
  • Standard: CSA Certified
  • Type: Offset Eye

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585316680
Length 23.5 Inch
Width 2.500 in
Type Rod Closing, Closed Mesh, Woven
Material Steel
Product Series Slack Grip
Applications General Cable Pulling
Cable Type UL Listed Circuit Wire
Height 1.5 Inch
Cable Size 0.75 - 0.99 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Woven
Sub Brand Kellems Wire Management
Product UPC 78358531668
Standard CSA
Country of Origin USA
