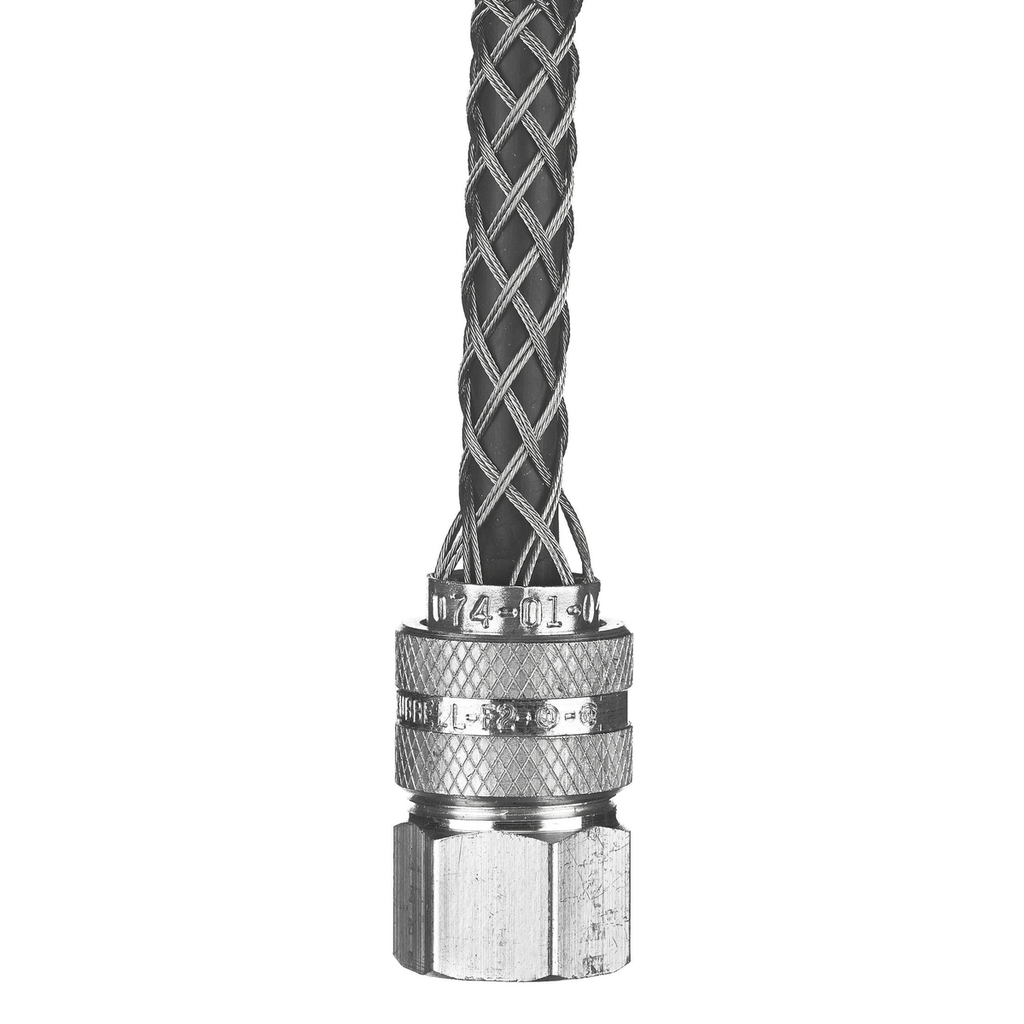

HWDK 07401043 STR FEM, DCG, .37-.50
Product image thumbnail 0
Product image thumbnail 1
$82.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 07401043
North Coast Part # 886342

Features

  • Stainless steel mesh is corrosion resistant
  • Multiweave grip gives cable arc-of-bend control
  • Endless weave provides easy cable/flexible conduit installation
  • Standard Product

Performance

  • Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting)
  • Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C)
  • Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
  • Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C

Industry Standard(s)

  • UL Listed

Specifications

  • Application: Straight Female- Form 2
  • Cable Diameter Range: 0.375 in-0.500 in
  • Cable Size: .375"-.500" (.95-1.27)
  • Carton Quantity: 5 EA
  • Conductor Range: 0.375-0.5 in (.95-1.27 mm)
  • Display Size: 1/2" NPT
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
  • Item Type: Deluxe Cord Grips
  • Material: Aluminum Fittings, Stainless Steel Mesh
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • Minimum Order Quantity: 1 EA
  • Number Of Conductors: Single
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • SAP Material Group 5: A30
  • Series: Deluxe Cord Grips
  • Style: For Insulated Cables
  • Temperature Rating: Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
  • Thread Size: 1/2" NPT
  • Type: Straight Female Thread
  • EU RoHS Indicator: Yes
  • Each - Length: 8.000 in
  • Each - Height: 1.000 in
  • Each - Width: 1.000 in
  • Special Features: Standard Product
  • Standard: UL Listed

Overview

UPC 78358532224
GTiN 00783585322247
Length 8.000 in
Width 1.000 in
Size 1/2" NPT IN
Type Straight, Standard, Deluxe
Material Aluminum Fitting, Stainless Steel Mesh
Number of Conductors 1
Product Series Deluxe Cord Grips
Applications For Straight Female- Form 2
Height 1.000 in
Temperature Rating Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
Sub Brand Kellems Wire Management
Cable Type Jacketed UL Listed Cable
Cable Size 0.37 - 0.5 in
TC Connection 1/2 in FNPT
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
