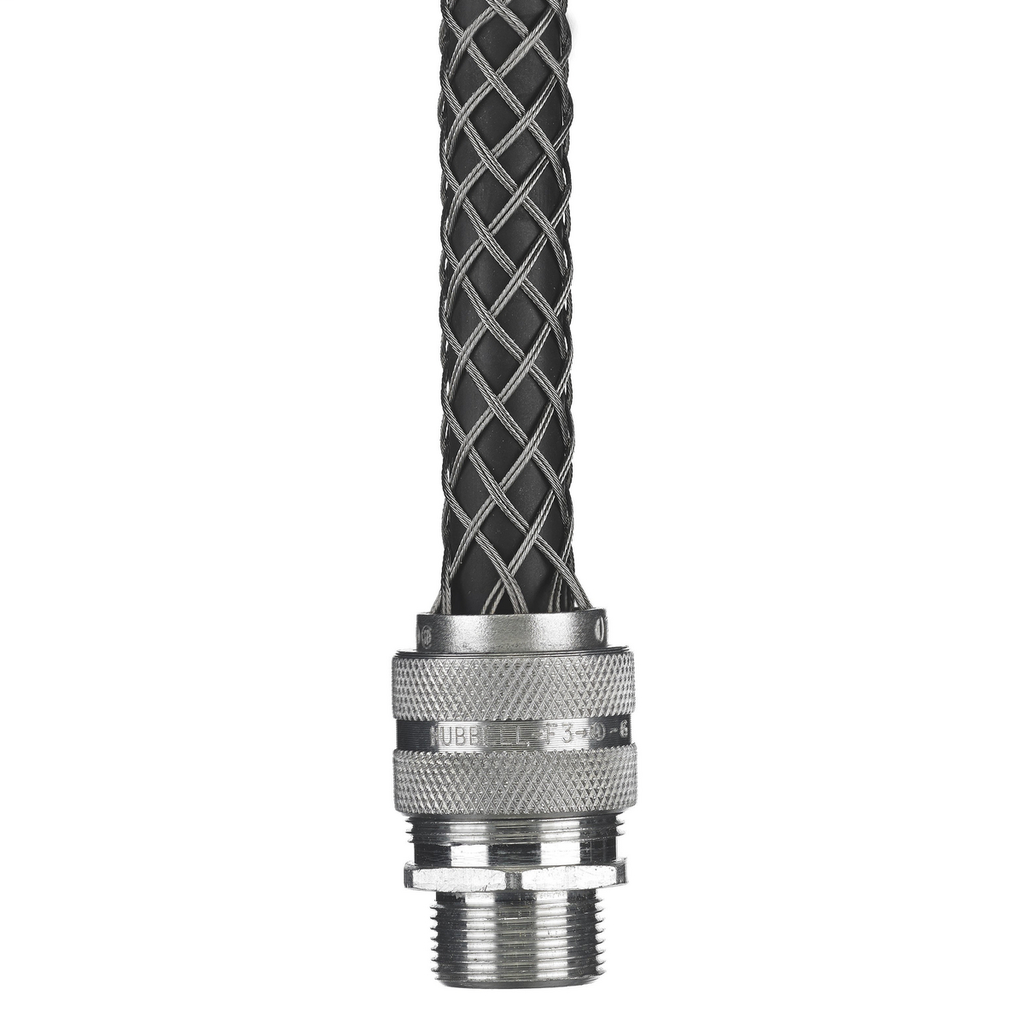

HCI 074PG291028 STR MALE, DCG, 1.1-
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$174.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 074PG291028
North Coast Part # 669950

Features

  • Aluminum Fiting
  • Stainless steel mesh is corrosion resistant
  • Neoprene bushing is oil and watertight
  • Standard Product

Performance

  • Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C)
  • Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
  • Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting)
  • Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C

Industry Standard(s)

  • UL Listed

Specifications

  • Application: Straight Male- Form 5
  • Cable Diameter Range: 1.125 in-1.250 in
  • Cable Size: 1.125"-1.250" (2.86-3.17)
  • Carton Quantity: 5 EA
  • Conductor Range: 1.125-1.25 in (2.86-3.17 mm)
  • Display Size: PG29
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
  • Hub Size: PG29
  • Item Type: Deluxe Cord Grips
  • Material: Aluminum Fittings, Stainless Steel Mesh
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • Minimum Order Quantity: 1 EA
  • Number Of Conductors: Single
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • SAP Material Group 5: A30
  • Series: PG and Metric Threaded
  • Style: For Insulated Cables
  • Temperature Rating: Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
  • Type: Straight PG Male Thread
  • EU RoHS Indicator: Yes
  • Each - Length: 12.500 in
  • Each - Height: 2.500 in
  • Each - Width: 2.500 in
  • Special Features: Standard Product
  • Standard: UL Listed

Overview

UPC 78358532785
GTiN 00783585327853
Length 12.500 in
Width 2.500 in
Size PG29
Type Straight, Male, Form 5, Standard, Deluxe
Material Aluminum
Number of Conductors 1
Product Series PG And Metric Threaded
Applications Straight Male- Form 5
Height 2.500 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
Sub Brand Kellems Wire Management
Cable Type Jacketed UL Listed Cable
Cable Size 1.125 - 1.25 in
TC Connection PG29
