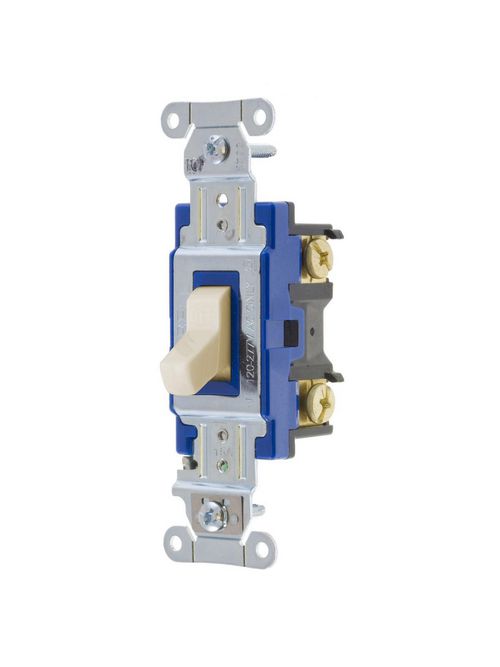

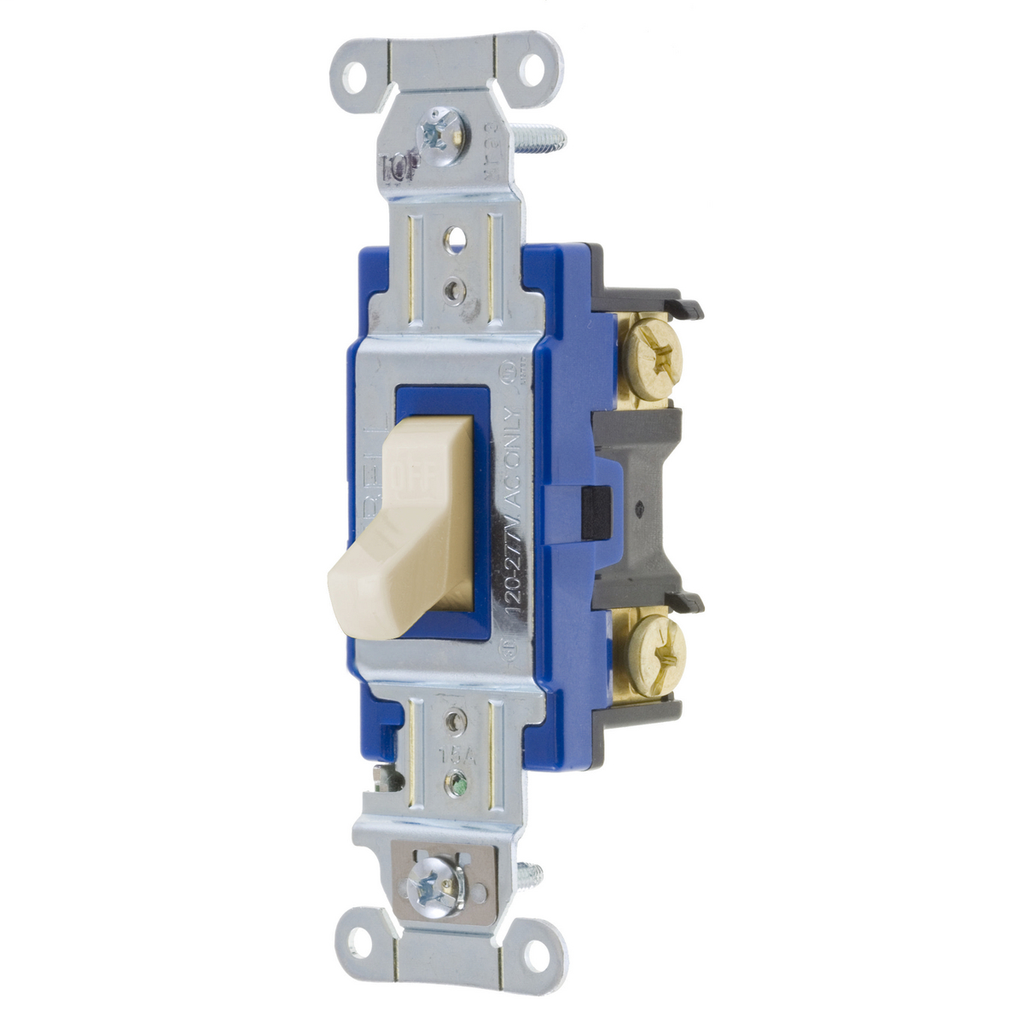

HWDK 1201LA SWITCH, HUBPRO, 1-POLE,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 1201LA
North Coast Part # 485413

Features

  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Dimensions: 4.18 in x 1.49 in x 1.83 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.83 in
  • Industry Standard(s): UL Listed
  • Length: 4.18 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Show Add To ProjectList: Yes
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Amperage Rating: 15 A
  • Application: Back and Side Wired
  • Color: Light Almond
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.18 in x 1.49 in x 1.83 in
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.49 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358518131
Item Long Description Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Light Almond
GTiN 00783585181318
Length 4.18 in
Width 1.49 in
Size 4.18 in x 1.49 in x 1.83 in
Color Light Almond
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type Toggle
Product Series Heavy Duty
Applications Back and Side Wired
Height 1.83 in
Weight 0.15 lb
Wattage 4155 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 15 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50k
Sub Brand AC Toggle Switches
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Action Positive Snap
