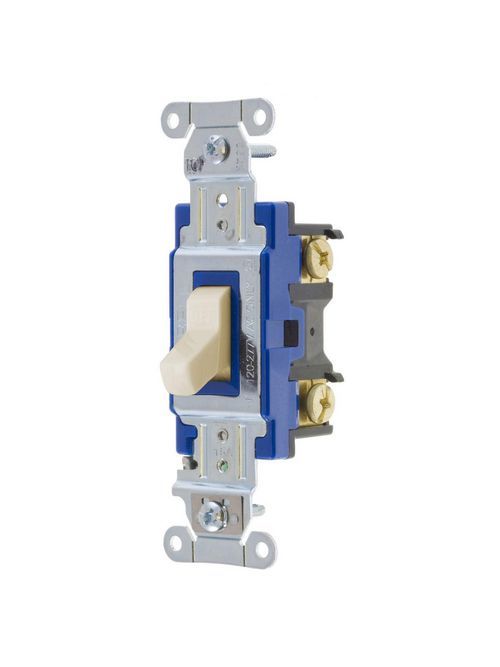

HWDK 1203LA SWITCH, HUBPRO, 3-WAY,

$4.72/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Country of Origin: CN
Current / Amperage Rating: 15 A
Dimensions: 4.18 in x 1.49 in x 1.83 in
Each - Height: 1.660 in
Each - Length: 4.160 in
Each - Width: 1.910 in
Height: 1.83 in
Industry Standard(s): UL Listed
Length: 4.18 in
Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Show Add To ProjectList: Yes
Temperature Rise - Max.: 30°C maximum at rated current
Action: SPDT
Amperage Rating: 15 A
Application: Back and Side Wired
Color: Light Almond
Number of Poles: Single Pole
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Size: 4.18 in x 1.49 in x 1.83 in
Standard: UL Listed
Type: Toggle
Voltage Rating: 120-277 VAC
Voltage Rating Description: 120-277 VAC
Width: 1.49 in

UPC	78358518134
Item Long Description	Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired , Light Almond
GTiN	00783585181349
Length	4.18 in
Width	1.49 in
Size	4.18 in x 1.49 in x 1.83 in
Color	Light Almond
Operating Temperature	Maximum continuous 75C and minimum -40C without Impact
Voltage	120-277 Volt
Type	Toggle
Product Series	Heavy Duty
Applications	Back and Side Wired
Height	1.83 in
Weight	0.15 lb
Wattage	4155 Watt
Family Brand Name	Hubbell Wiring Device Kellems
TC Connection	Back and Side Wired
Actuator	Toggle
Contact Configuration	Two Position
Current	15 A
Contact Rating	Per UL 20
Number of Poles	1 Pole
Enclosure	None
Operating Cycles	50k
Sub Brand	AC Toggle Switches
Standard	UL
Environmental Conditions	Indoor Dry unless protected by additional means
Action	SPDT
