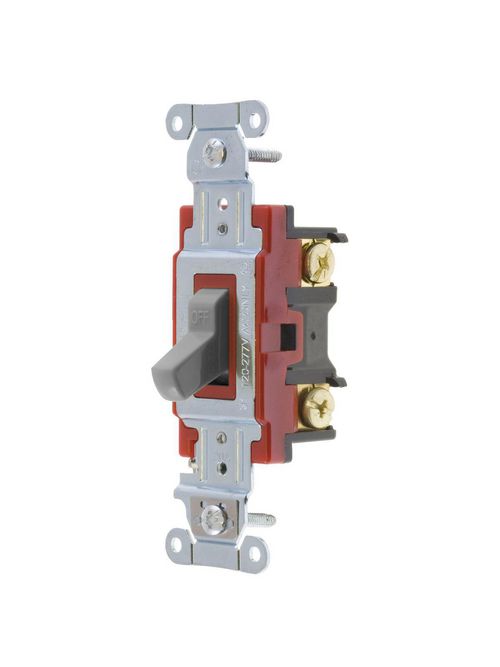

Hubbell Wiring Devices 1222GY 20 Amp 120/277 VAC 2-Pole Gray Toggle Switch

$5.95/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Application: Back and Side Wired
Color: Gray
Number Of Poles: Double Pole
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 20A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Series: Heavy Duty
Style: Double Pole
Type: Toggle
UPC: 783585181394

UPC	78358518139
GTiN	00783585181394
Length	4.18 in
Width	1.49 in
Size	4.18 in x 1.49 in x 1.83 in
Color	Gray
Operating Temperature	Maximum continuous 75C and minimum -40C without Impact
Voltage	120-277 Volt
Type	General Purpose, Standard, Heavy Duty, 2-Position
Product Series	Heavy Duty
Applications	Back and Side Wired
Height	1.83 in
Weight	0.15 lb
Wattage	5540 Watt
Family Brand Name	Hubbell Wiring Device Kellems
Carton Qty	10
TC Connection	Back and Side Wired
Actuator	Toggle
Contact Configuration	Two Position
Current	20 A
Contact Rating	Per UL 20
Number of Poles	2 Pole
Enclosure	None
Operating Cycles	50000
Sub Brand	AC Toggle Switches
Grade	Industrial
Standard	UL
Environmental Conditions	Indoor Dry unless protected by additional means
Action	Positive Snap
