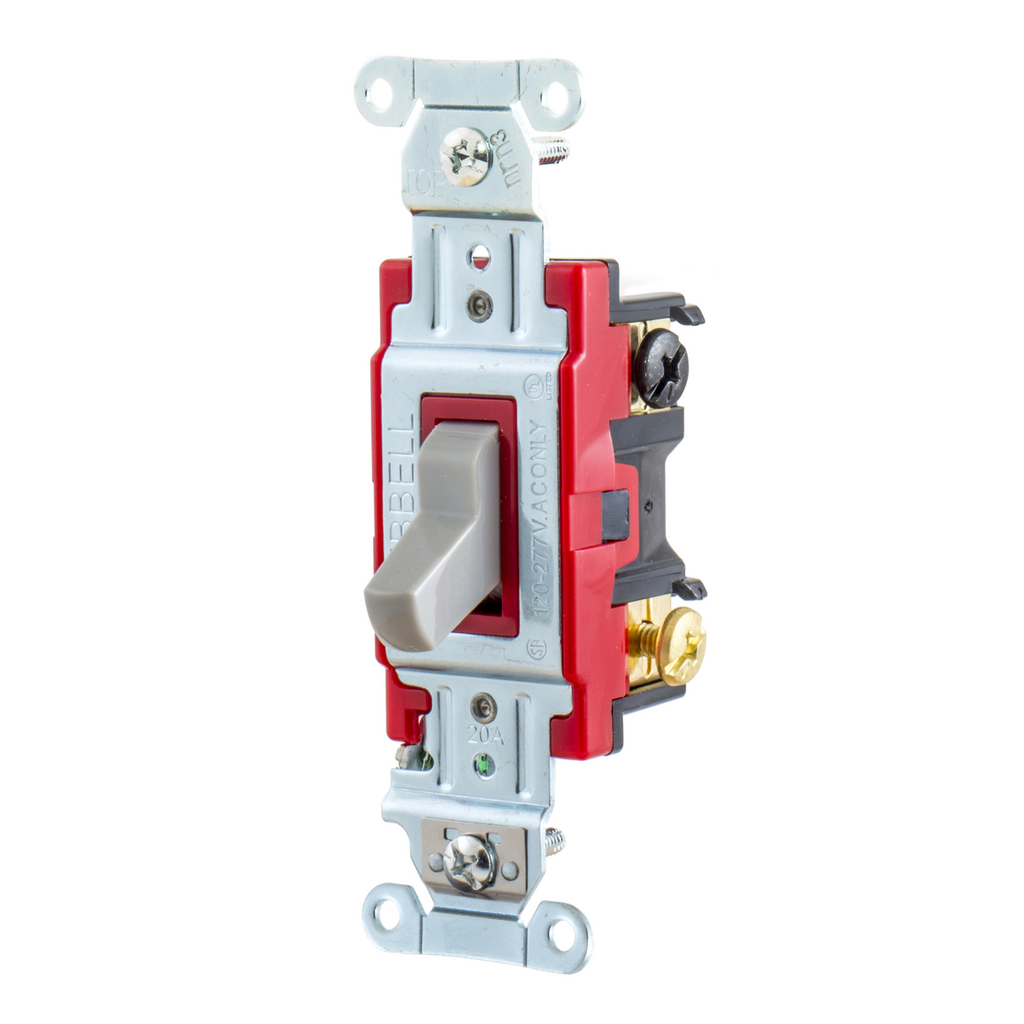

Hubbell Wiring Devices 1223GY 20 Amp 120/277 VAC 3-Way Gray Toggle Switch
$4.50/ea
In Stock | 9 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 1223GY
North Coast Part # 485429

Features

  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring

Specifications

General

  • Action: SPDT
  • Application: Back and Side Wired
  • Color: Gray
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 20A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: Heavy Duty
  • Style: Three Way
  • Type: Toggle
  • UPC: 783585181455

Dimensions

  • Dimensions: 4.18 in x 1.49 in x 1.83 in
  • Height: 1.83 in
  • Length: 4.18 in
  • Weight: 0.2 lb
  • Width: 1.49 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358518145
GTiN 00783585181455
Length 4.18 in
Width 1.49 in
Size 4.18 in x 1.49 in x 1.83 in
Color Gray
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, 2-Position, 3-Way, Standard, Heavy Duty
Product Series Heavy Duty
Applications Back and Side Wired
Height 1.83 in
Grade Industrial
Weight 0.2 lb
Wattage 5,540 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50000
Sub Brand AC Toggle Switches
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Action SPDT
