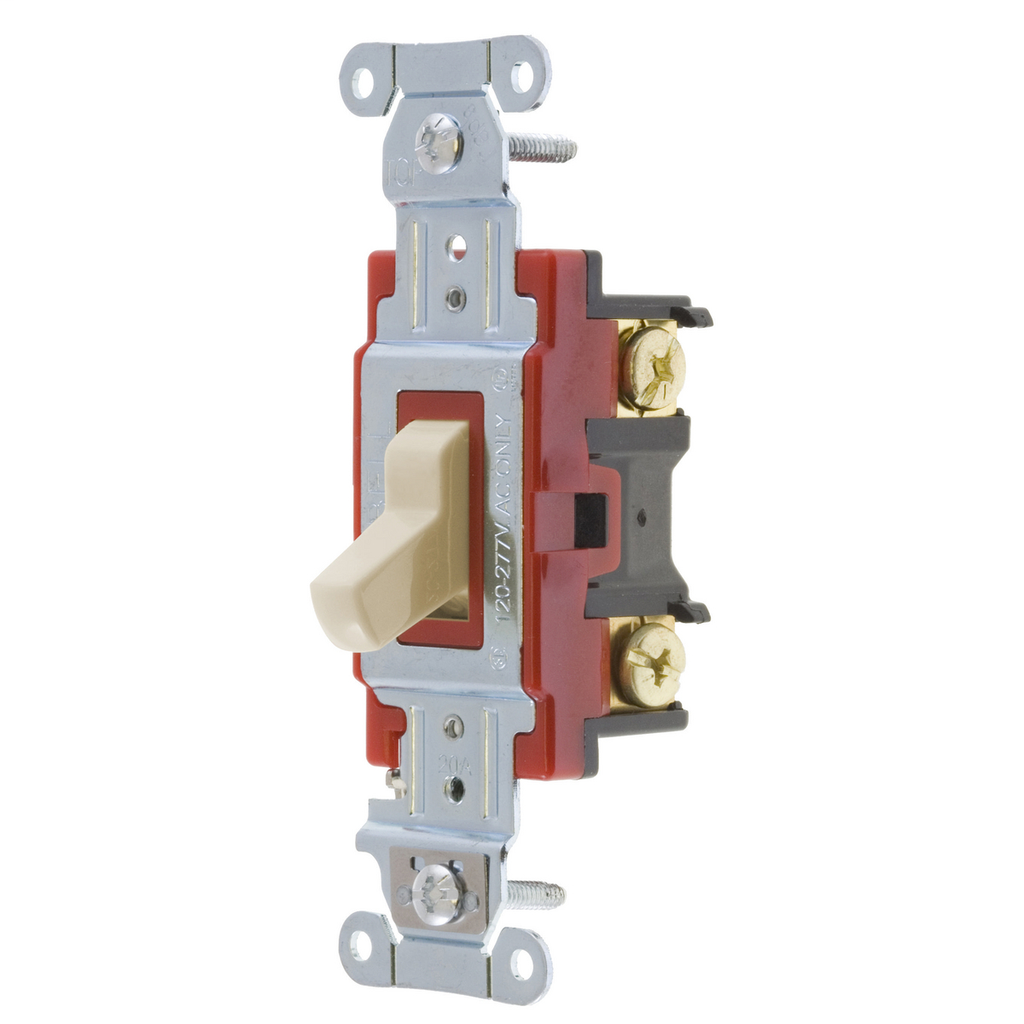

HWDK 1224AL SWITCH, HUBPRO, 4-WAY,

$12.48/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Action: DPDT
Application: Back and Side Wired
Color: Almond
Number Of Poles: Double Pole
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 20A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Series: Heavy Duty
Style: Four Way
Type: Toggle
UPC: 783585110035

UPC	78358511003
GTiN	00783585110035
Length	4.18 in
Width	1.49 in
Size	Standard Sized
Color	Almond
Operating Temperature	Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage	120-277 Volt
Type	General Purpose, Standard, Heavy Duty, 4-Way, 2-Position
Product Series	Heavy Duty
Applications	Heavy Duty Industrial
Height	1.83 in
Weight	0.2 lb
Wattage	5,540 Watt
Family Brand Name	Hubbell Wiring Device Kellems
Carton Qty	10
TC Connection	Back and Side Wired
Actuator	Toggle
Contact Configuration	Two Position
Current	20 A
Contact Rating	Per UL 20
Number of Poles	2 Pole
Enclosure	None
Operating Cycles	50000
Sub Brand	AC Toggle Switches
Grade	Industrial
Standard	UL
