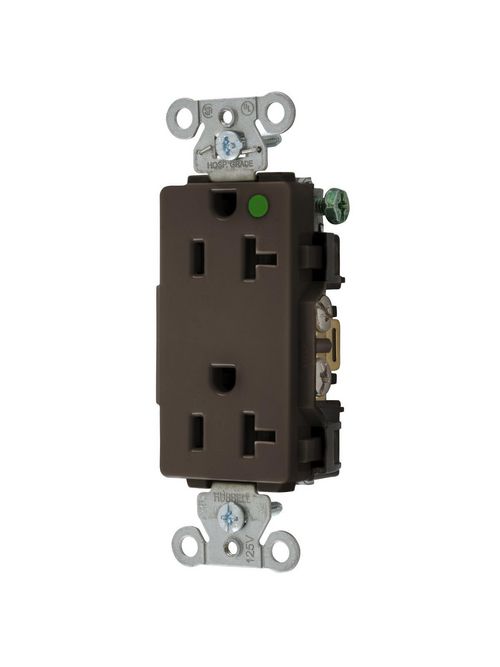

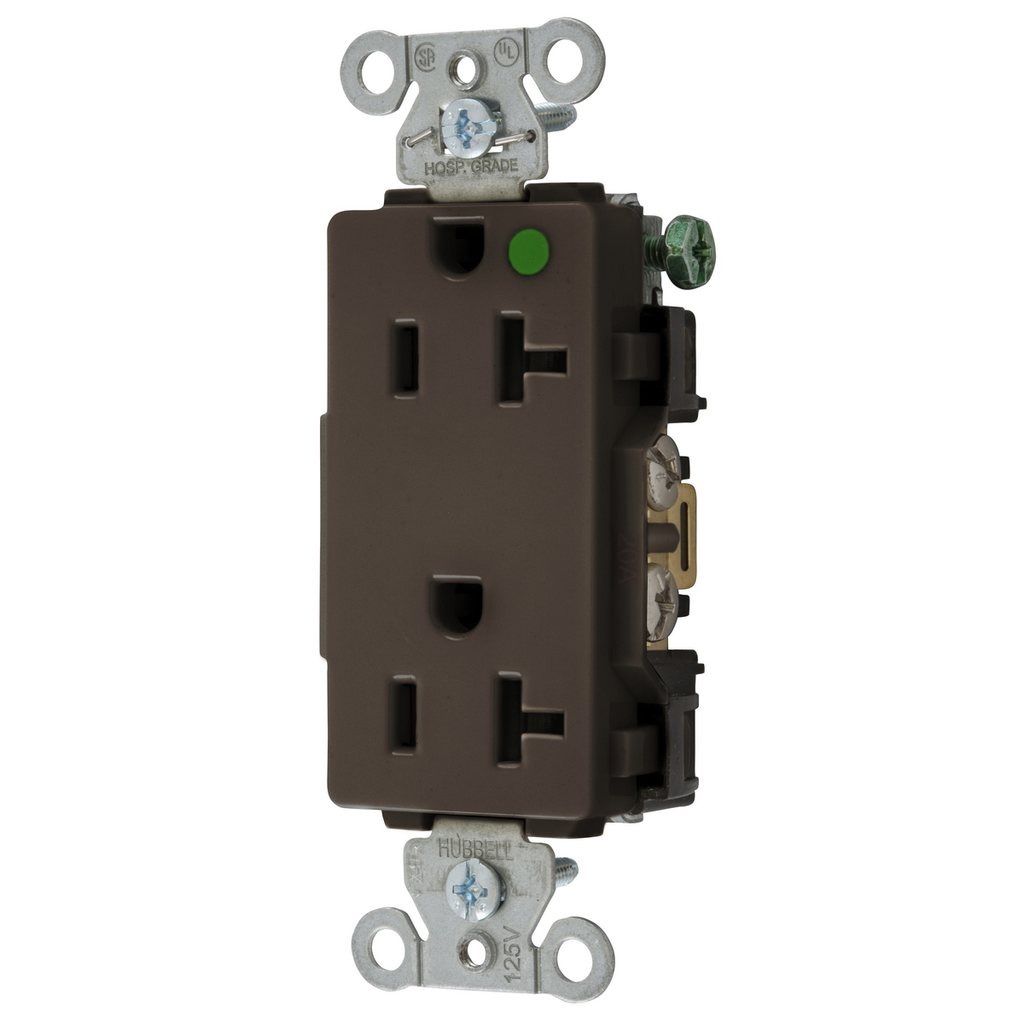

HWDK 2182 RCPT DECO DUP HG HUBPRO 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$12.56/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # 2182
North Coast Part # 1011350

Features

  • Triple wipe contacts
  • High impact resistant decorator face
  • Steel mounting strap
  • Self Grounding, USA Product

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.57 in x 1.15 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.15 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Hubbell-Pro Heavy Duty Hospital Grade
  • Color: Brown
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.57 in x 1.15 in
  • Special Features: Self Grounding, USA Product
  • Standard: Certified to CSA, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
  • Type: Duplex Receptacle
  • Voltage Rating: 125 VAC
  • Wattage: 2500 W
  • Wire Size: #12 AWG to #10 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.57 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358519657
Item Long Description Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown.
GTiN 00783585196572
Length 3.28 in
Width 1.57 in
Size 3.28 in x 1.57 in x 1.15 in
Color Brown
Voltage 125 Volt
Type Duplex Receptacle
Material Nylon
Product Series Hubbell,Pro
Applications Hubbell-Pro Heavy Duty Hospital Grade
Height 1.15 in
Weight 0.15 lb
Wire Size 12-10 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
